Center Console Rear Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

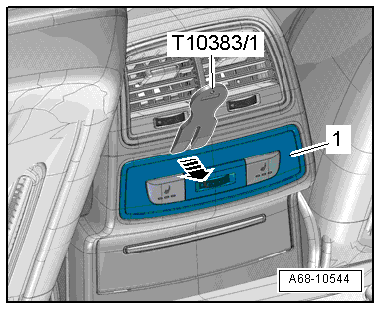

Fig 1: Identifying Cover↓
GWWA68-10544Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the cover -1- from the center console using the Wedge Set T10383/1 -arrow- and remove with the switch.

-- Disconnect the connector for the Left/Right Rear Heated Seat Regulating Switch -E128- / -E129-.
