Center Console Insert, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Vehicles with a selector lever: Move the selector lever into "D/S".
-- Turn off the ignition.

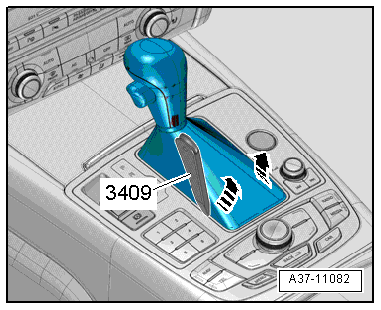

-- Lift the selector lever/shift lever boot by hand or carefully pry it out on the side with the Trim Removal Wedge 3409 -arrows- and fold it upward.
-- Tape off the center console trim panel all around the center console insert using adhesive tape to avoid damaging the surface.
CAUTION:
The retainer on the Access/Start Authorization Button -E408- can be damaged if the center console is lifted too high because the electrical wire to the button is short. Loosen the lift the center console insert carefully.
-- Reach with the hand under the center console insert -arrow A- and carefully remove it upward from the center console -arrow B-.
-- Disconnect the connectors and carefully remove the center console insert -1- over the selector lever/gearshift lever.
