CUPHOLDER Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

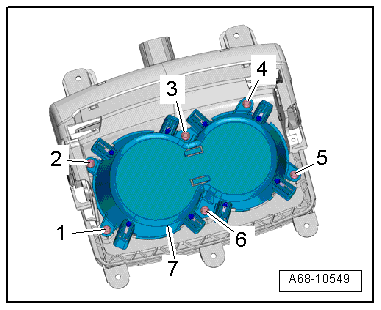

Fig 1: Identifying Screws And Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cupholder. Refer to Removing .

-- Remove the screws -1 through 6- and the bracket -7-.

-- Lift the retainers -3- by the bottom using a small screwdriver and push the trim in direction of -arrow- at the same time.

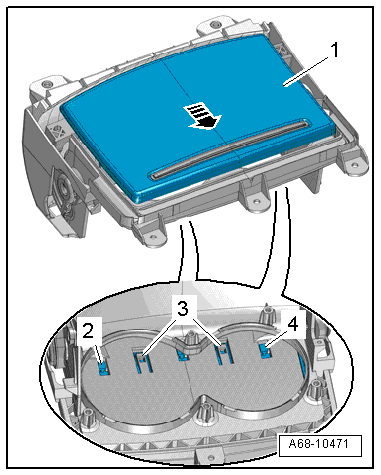

Fig 2: Identifying Cupholder Trim

Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim -1- from the cover.
