Lane Change Assistance, Preparing For Calibration
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

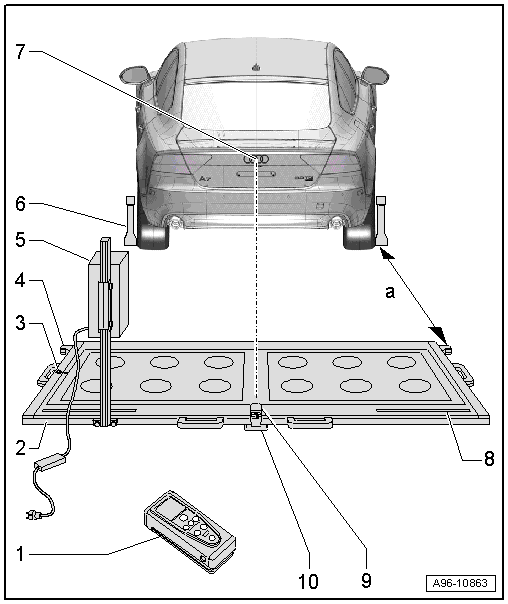

- Distance Laser -VAS 6350/2-
- For distance measurement
- Refer to the Operating Instructions that come with the Calibration Tool -VAS 6350-.
- Calibration Tool For Lane Changing Assist -VAS 6350-
- Water Level
- On Calibration Device -VAS 6350-
- To check horizontal position of Calibration Device -VAS 6350-.
- Catch Bracket
- For mounting distance laser -VAS 6350/2- for distance measurement.
- Distance to wheel center sensors -VAS 6350/1- on rear wheels: Dimension -a- = 1700 ± 2 mm.
- Lane Change Assistance Calibration Device -VAS 6350/4-
- Is moved from one side of measuring field to the other during calibration.
- When installed correctly, vehicle electrical system voltage line must be connected at bottom left of calibration device (as seen in direction of travel).
- Wheel Center Sensor -VAS 6350/1-
- With wheel bolt adapter and measuring paddle.
- Brand Emblem
- The laser point is aligned on the center of the brand emblem.
- Measurement Scale
- For positioning Lane Change Assistance Calibration Device -VAS 6350/4-.
- Line Laser -VAS 6350/3-
- With "Laser eye protection"
- On Calibration Device -VAS 6350-
- Turning on and off, refer to the Operating Instructions that come with theCalibration Tool -VAS 6350-.
- Plastic Foot
- Quantity 3
- Adjustable in order to adjust horizontal position of Calibration Device -VAS 6350-.
