Rear Door Lamps And Switches Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

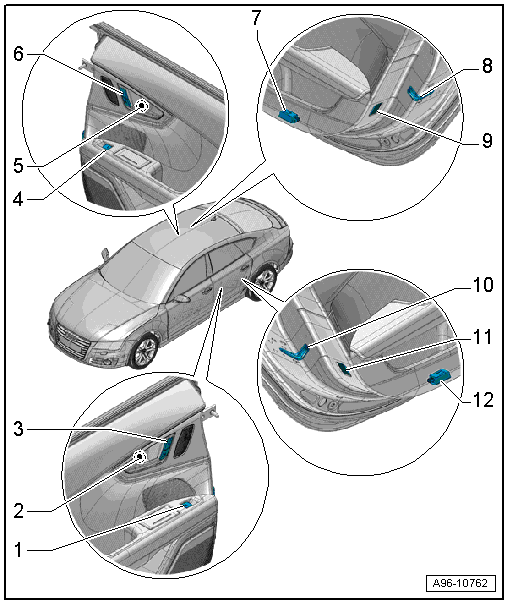

Fig 1: Identifying Door Lamps and Switches Overview

Courtesy of AUDI OF AMERICA, LLC

Left Rear Power Window Button In Left Rear Door -E700-
- Vehicles with Right rear power window button in left rear door -E701-.
- Removing and installing, refer to LEFT AND RIGHT REAR POWER WINDOW BUTTON IN REAR DOOR .
Left Rear Door Opener Illumination -L110-
- Removing and installing, refer to REAR DOOR OPENER ILLUMINATION BULB .
Left Rear Interior Lock Switch -E273-
- Removing and installing, refer to DRIVER/FRONT PASSENGER INTERIOR LOCKING SWITCH .
Right Rear Power Window Button In Right Rear Door -E705-
- Vehicles with Right rear power window button in left right door -E706-.
- Removing and installing, refer to LEFT AND RIGHT REAR POWER WINDOW BUTTON IN REAR DOOR .
Right Rear Door Opener Illumination -L111-
- Removing and installing, refer to REAR DOOR OPENER ILLUMINATION BULB .
Right Rear Interior Lock Switch -E274-
- Removing and installing, refer to DRIVER/FRONT PASSENGER INTERIOR LOCKING SWITCH .
Right Rear Entry Light -W34-
- 12V, 3 W
- Removing and installing, refer to LEFT REAR ENTRY LAMP AND RIGHT REAR ENTRY LAMP .
Right Rear Door Contact Switch -F11-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- For replacing the door lock, refer to 58 REAR DOORS .
Right rear door warning light -W38-
- 12V, 3 W
- Removing and installing, refer to LEFT AND RIGHT REAR DOOR WARNING LAMP .
Left Rear Door Contact Switch -F10-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- For replacing the door lock, refer to 58 REAR DOORS .
Left Rear Door Warning Light -W37-
- 12V, 3 W
- Removing and installing, refer to LEFT AND RIGHT REAR DOOR WARNING LAMP .
Left Rear Entry Light -W33-
- 12V, 3 W
- Removing and installing, refer to LEFT REAR ENTRY LAMP AND RIGHT REAR ENTRY LAMP .
