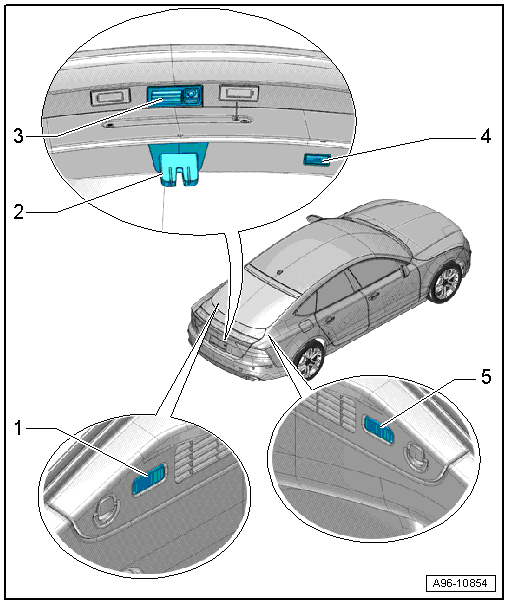

Luggage Compartment Lamps And Switches Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Left Luggage Compartment Lamp -W3-
- Inside the top of the luggage compartment trim panel.
- 12V, 5 W
- Removing and installing, refer to LUGGAGE COMPARTMENT LAMP .
- Rear Lid Contact Switch
- Rear Lid Lock Cylinder Unlock Button -F248-
- Removing and installing, refer to REAR LID LOCK CYLINDER UNLOCK BUTTON .
- Rear Lid Closing Button in Luggage Compartment -E406-
- Removing and installing, refer to REAR LID LOCK BUTTON IN LUGGAGE COMPARTMENT .
- Right Luggage Compartment Lamp -W3-
- Inside the top of the luggage compartment trim panel.
- 12V, 5 W
- Removing and installing, refer to LUGGAGE COMPARTMENT LAMP .
