Instrument Panel Lights And Switches Overview: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Observe notes on contact corrosion CONTACT CORROSION .

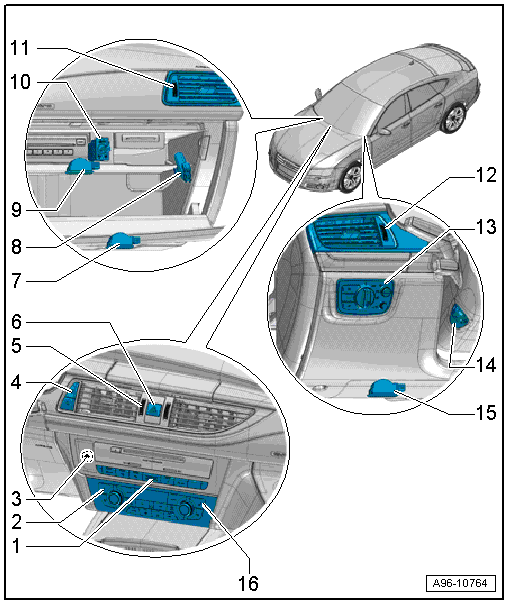

Fig 1: Identifying Instrument Panel Lights and Switches Overview

Courtesy of AUDI OF AMERICA, LLC

Switch Unit
- With Start/Stop mode button -E693-, Parallel parking assistance button -E581-, Parking aid button -E266-, Front passenger airbag disabled indicator lamp -K145-, Rear spoiler switch -E127-, ASR/ESP button -E256-.
- Removing and installing, refer to SWITCH UNIT WITH START/STOP MODE BUTTON, PARKING AID BUTTON, FRONT PASSENGER AIRBAG -DISABLED- INDICATOR LAMP, REAR SPOILER ADJUSTMENT SWITCH AND ASR/ESP BUTTON .
Left Seat Heating Button -E653-
- Integrated in the Climatronic control module -J255-. Cannot be replaced separately if faulty.
- For replacing the Climatronic control module -J255-, refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
Anti-Theft Immobilizer Reading Coil -D2-
- Overview, refer to STEERING COLUMN ELECTRONICS CONTROL MODULE -J527- AND ELECTRONIC IGNITION LOCK OVERVIEW .
Switch Unit
- With Front display open/close button -E462-, Display unit button -E506-.
- Removing and installing, refer to FRONT DISPLAY OPEN/CLOSE AND DISPLAY UNIT BUTTON SWITCH UNIT -E462- / -E506- .
Center Instrument Panel Vent
- Vehicles with left and right Center instrument panel vent illumination bulb -L68-.
- Cannot be replaced separately if faulty.
- Removing and installing, refer to 70 INTERIOR TRIM .
Emergency Flasher Button -E229-
- Removing and installing, refer to EMERGENCY FLASHER BUTTON -E229- .
Right Front Footwell Illumination Bulb -L152-
- Removing and installing, refer to FRONT FOOTWELL ILLUMINATION BULB .
Glove Compartment Lamp Switch -E26-
- Removing and installing, refer to GLOVE COMPARTMENT LAMP SWITCH -E26- .
Glove Compartment Light -W6-
- 12V, 5 W
- Removing and installing, refer to GLOVE COMPARTMENT LAMP .
Valet Parking Lock Button/Front Passenger Airbag Deactivation Key Switch
- Equipment level
- Valet Parking Lock button -E536-, removing and installing, refer to VALET PARKING LOCK BUTTON -E536- .
- Front Passenger Airbag deactivation Key Switch -E224-, removing and installing, refer to 69 PASSENGER PROTECTION, AIRBAGS, SEAT BELTS .
Right Instrument Panel Vent Illumination Bulb -L69-
- Equipment level
- Cannot be replaced separately if faulty.
- Removing and installing, refer to 70 INTERIOR TRIM .
Left Instrument Panel Vent Illumination Bulb -L67-
- Equipment level
- Cannot be replaced separately if faulty.
- Removing and installing, refer to 70 INTERIOR TRIM .
Headlamp Switch -E1-
- With the Instrument panel illumination dimmer switch -E20-.
- With Rear fog lamp button -E314-, Fog lamp button -E315-, Infrared camera button -E680-.
- Removing and installing, refer to LIGHT SWITCH -E1- .
Steering Column Adjustment Switch -E167-
- With Steering wheel heating button -E522-.
- Removing and installing, refer to STEERING COLUMN ADJUSTMENT SWITCH -E167- AND STEERING WHEEL HEATING BUTTON .
Left Front Footwell Illumination -L151-
- Removing and installing, refer to FRONT FOOTWELL ILLUMINATION BULB .
Right Seat Heating Button -E654-
- Integrated in the Climatronic control module -J255-. Cannot be replaced separately if faulty.
- For replacing the Climatronic control module -J255-, refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
