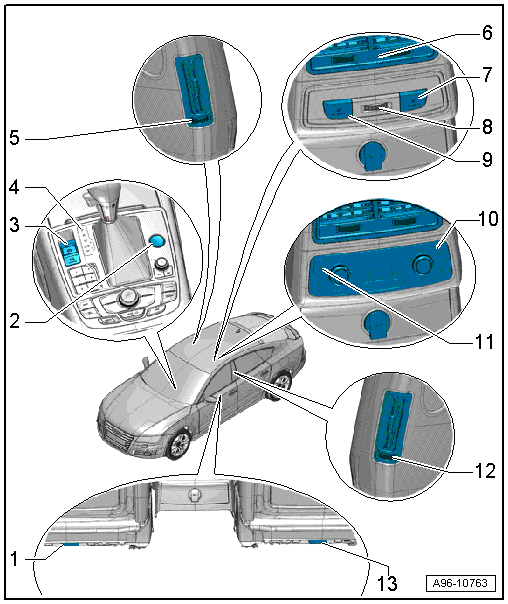

Center Console Lamps And Switches Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Left Rear Footwell Light -W45-
- Removing and installing, refer to REAR FOOTWELL LAMP .
- Access/Start Authorization Button -E408-
- Removing and installing, refer to ACCESS/START AUTHORIZATION BUTTON -E408- .
- Electromechanical Parking Brake Button -E538-
- Vehicles with -AUTO HOLD- button -E540-.
- Removing and installing, refer to ELECTRO-MECHANICAL PARKING BRAKE AND -AUTO HOLD- BUTTONS -E538- / -E540- .
- Selector Lever Transmission Range Position Display Unit -Y26-
- Removing and installing, refer to SELECTOR LEVER TRANSMISSION RANGE POSITION DISPLAY -Y26- .
- Right B-Pillar Vent
- Vehicles with right rear air vent illumination bulb -L89-.
- Cannot be replaced separately if faulty.
- Removing and installing, refer to 70 INTERIOR TRIM .
- Rear Center Air Vent Illumination Bulb -L87-
- Equipment level
- Cannot be replaced separately if faulty.
- Removing and installing, refer to 68 INTERIOR EQUIPMENT .
- Right Rear Heated Seat Regulating Switch -E129-
- Removing and installing, refer to REAR HEATED SEAT REGULATING SWITCHES, WITH BASIS A/C SYSTEM -E128- / -E129- .
- Rear Temperature Selection Potentiometer -G538-
- Country-specific and equipment level.
- Common part with trim, cannot be replaced separately.
- Removing and installing, refer to 68 INTERIOR EQUIPMENT .
- Left Rear Heated Seat Regulating Switch -E128-
- Removing and installing, refer to REAR HEATED SEAT REGULATING SWITCHES, WITH BASIS A/C SYSTEM -E128- / -E129- .
- Right Rear Heated Seat Regulating Switch -E129-
- Equipment level.
- Integrated in Rear Climatronic A/C display control head -E265-. Cannot be replaced separately if faulty.
- Replace Rear Climatronic A/C display control head -E265-, refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
- Left Rear Heated Seat Regulating Switch -E128-
- Equipment level
- Integrated in Rear Climatronic A/C display control head -E265-. Cannot be replaced separately if faulty.
- Replace Rear Climatronic A/C display control head -E265-, refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
- Left B-Pillar Vent
- Vehicles with Left rear air vent illumination bulb -L88-.
- Cannot be replaced separately if faulty.
- Removing and installing, refer to 70 INTERIOR TRIM .
- Right Rear Footwell Light -W46-
- Removing and installing, refer to REAR FOOTWELL LAMP .
