Ambient Lighting Inside The Doors
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

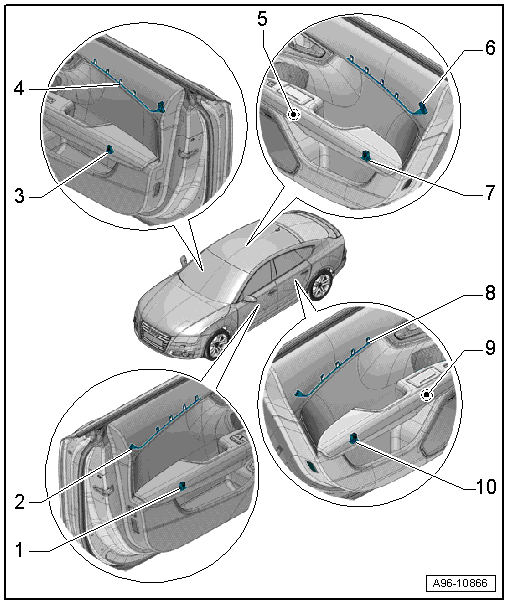

- Driver Door Storage Compartment Illumination Bulb -L160-
- Removing and installing, refer to DRIVER AND FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L160- / -L161- .
- Driver Door Ambient Lighting Bulb -L164-
- Removing and installing, refer to FRONT DOOR AMBIENT LIGHTING BULB -L164- / -L165- .
- Front Passenger Door Storage Compartment Illumination Bulb -L161-
- Removing and installing, refer to DRIVER AND FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L160- / -L161- .
- Front Passenger Door Ambient Lighting Bulb -L165-
- Removing and installing, refer to FRONT DOOR AMBIENT LIGHTING BULB -L164- / -L165- .
- Right Rear Ashtray Illumination Bulb -L49-
- Removing and installing, refer to REAR ASHTRAY ILLUMINATION BULB -L48- / -L49- .
- Right Rear Door Ambient Lighting Bulb -L167-
- Removing and installing, refer to LEFT AND RIGHT REAR DOOR AMBIENT LIGHTING BULB -L166- / -L167- .
- Right Rear Door Storage Compartment Illumination Bulb -L171-
- Removing and installing, refer to LEFT AND RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L170- / -L171- .
- Left Rear Door Ambient Lighting Bulb -L166-
- Removing and installing, refer to LEFT AND RIGHT REAR DOOR AMBIENT LIGHTING BULB -L166- / -L167- .
- Left Rear Ashtray Illumination Bulb -L48-
- Removing and installing, refer to REAR ASHTRAY ILLUMINATION BULB -L48- / -L49- .
- Left Rear Door Storage Compartment Illumination Bulb -L170-
- Removing and installing, refer to LEFT AND RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L170- / -L171- .
