Overview - Radiator/Coolant Fan, AUDI S6/S7
WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

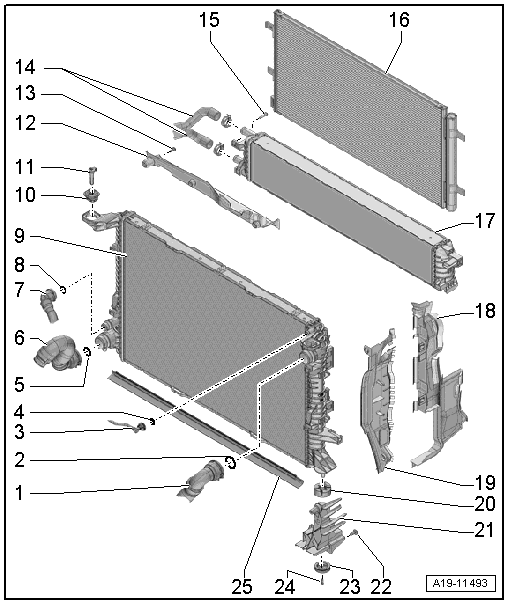

- Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Fig 2
- O-Ring
- Replacing
- Coolant Hose
- To the coolant reservoir
- Lift the retaining clamp to remove
- Connecting, refer to Fig 2
- O-Ring
- Replacing
- O-Ring
- Replacing
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Fig 2
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Fig 2
- O-Ring
- Replacing
- Radiator
- Removing and installing with fan shroud, refer to RADIATOR, REMOVING AND INSTALLING, AUDI S6/S7 .
- After replacing, replace entire amount of coolant
- Rubber Buffer
- Retaining Pin
- Disengage and remove using screwdriver
- Bracket
- Bolt
- 5 Nm
- Coolant Hoses
- Bolt
- 7 Nm
- Condenser
- Removing and installing, refer to REFRIGERANT CIRCUIT .
- Radiator for the Charged Air Coolant Circuit
- Removing and installing, refer to CHARGE AIR COOLING CIRCUIT RADIATOR, REMOVING AND INSTALLING .
- Air Guide
- Air Guide
- Rubber Bushing
- For the radiator
- Radiator Bracket
- Bolt
- 5 Nm
- Rubber Buffer
- Bolt
- 4.5 Nm
- Air Guide
-- Remove the old O-ring -2- in the coolant hose -3-.
-- Coat the new O-ring with coolant and install it in the coolant hose.
-- Press the coolant hose onto the connection -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
