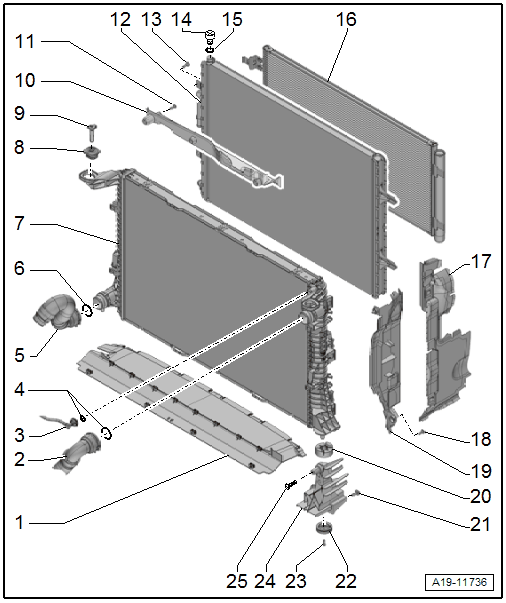

Overview - Radiator/Coolant Fan, AUDI RS6/RS7
WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
- Air Guide
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Figure
- Coolant Hose
- To the coolant reservoir
- Lift the retaining clamp to remove
- Connecting, refer to Figure
- O-Rings
- Replacing
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Figure
- O-Ring
- Replacing
- Radiator
- Removing and installing with fan shroud, refer to RADIATOR, REMOVING AND INSTALLING, AUDI S6/S7 .
- After replacing, replace entire amount of coolant
- Rubber Buffer
- Retaining pin
- Disengage and remove using screwdriver
- Bracket
- Bolt
- 5 Nm
- Radiator for the Charged Air Coolant Circuit
- Removing and installing, refer to CHARGE AIR COOLING CIRCUIT RADIATOR, REMOVING AND INSTALLING .
- After replacing, replace entire amount of coolant
- Bolt
- 5 Nm
- Bleed Screw
- O-Ring
- Replacing
- Condenser
- Removing and installing, refer to REFRIGERANT CIRCUIT .
- Air Guide
- Bolt
- 5 Nm
- Air Guide
- Rubber Bushing
- For the radiator
- Bolt
- 7 Nm
- Rubber Buffer
- Bolt
- 8 Nm
- Radiator Bracket
- Bolt
- 18 Nm
