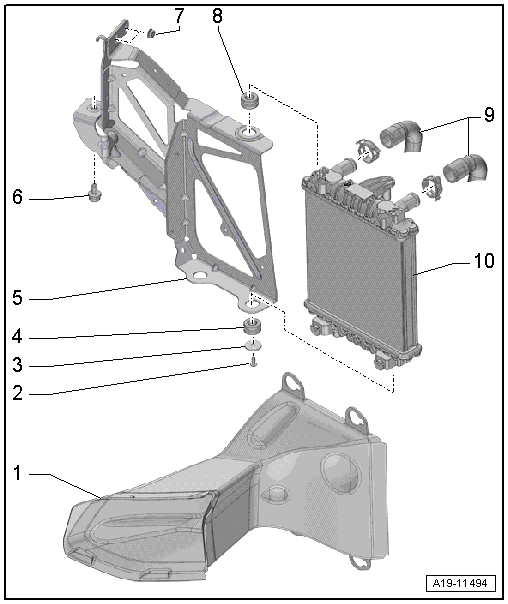

Overview - Auxiliary Cooler, Radiator Coolant Circuit For ATF Cooling, AUDI S6/S7
WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Air Guide
- Installed at the rear air guide
- Unclip it to the side to remove
- Bolt
- 3.5 Nm
- Washer
- Rubber Bushing
- For the radiator
- Bracket
- For the left charge air cooling circuit radiator
- Bolt
- 20 Nm
- Nut
- 8 Nm
- Rubber Bushing
- For the radiator
- Coolant Hoses
- For Radiator Coolant Circuit for ATF Cooling
- Removing and installing, refer to RADIATOR COOLANT CIRCUIT FOR ATF COOLING, REMOVING AND INSTALLING, AUDI S6/S7 .
- After replacing, replace entire amount of coolant
