Overview - Auxiliary Cooler, Radiator Coolant Circuit For ATF Cooling, AUDI RS6/RS7
WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

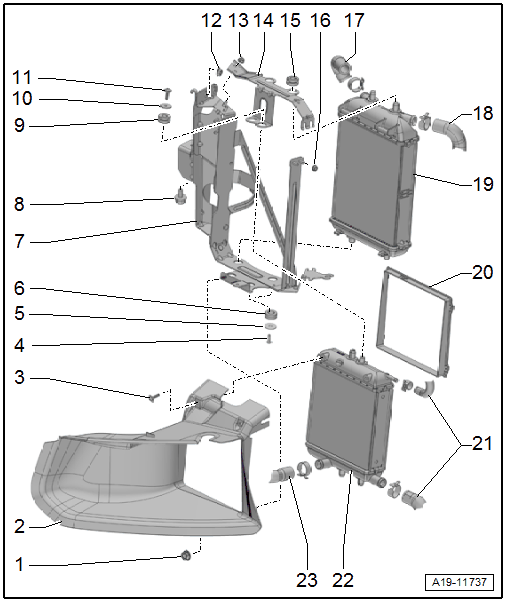

Fig 1: Identifying Auxiliary Cooler, Radiator Coolant Circuit For ATF Cooling, Audi RS6/RS7 Overview
- Nut
- 5 Nm
- Air Guide
- Bolt
- 5 Nm
- Bolt
- 3.5 Nm
- Washer
- Rubber Bushing
- For the radiator
- Bracket
- Bolt
- 20 Nm
- Rubber Bushing
- For the radiator
- Washer
- Bolt
- 3.5 Nm
- Nut
- 9 Nm
- Nut
- 9 Nm
- Bracket
- Rubber Bushing
- For the radiator
- Nut
- 9 Nm
- Coolant Hose
- Coolant Hose
- Rear Radiator Coolant Circuit for ATF Cooling
- Removing and installing, refer to RADIATOR COOLANT CIRCUIT FOR ATF COOLING, REMOVING AND INSTALLING, AUDI RS6/RS7 .
- After replacing, replace entire amount of coolant
- Air Guide
- Coolant Hoses
- Front Radiator Coolant Circuit for ATF Cooling
- Removing and installing, refer to RADIATOR COOLANT CIRCUIT FOR ATF COOLING, REMOVING AND INSTALLING, AUDI RS6/RS7 .
- After replacing, replace entire amount of coolant
- Coolant Hose
