Charge Air Cooling Circuit Cooler, Removing And Installing, AUDI RS6/RS7: Removing

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

Audi RS7:

-- Remove the front bumper cover, refer to FRONT BUMPER .

Continuation for All Vehicles:

-- Open the retaining tabs in direction of -arrows-, remove the air duct -1- from the front.

Fig 1: Identifying Air Duct

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant line -arrow-.

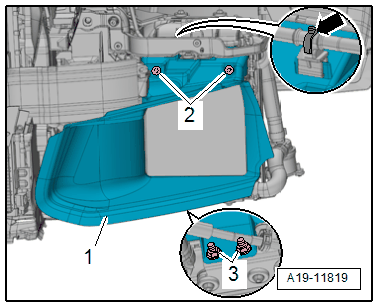

Fig 2: Identifying Air Duct With Screws And Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -2- and nuts -3- and remove the air duct -1-.

-- Remove the condenser, refer to REFRIGERANT CIRCUIT .

-- Place the Shop Crane - Drip Tray VAS 6208 underneath.

-- Loosen the hose clamps -2 and 3-, then clamp off the coolant hoses with the Hose Clamp - Up To 25 mm 3094 and remove them.

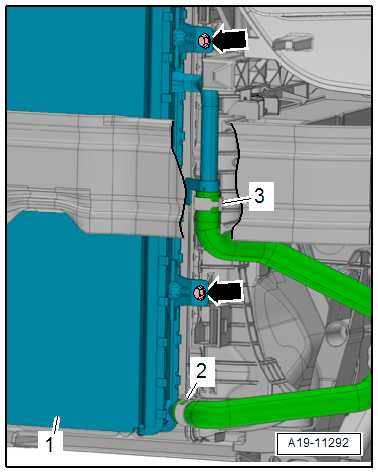

-- Remove the bolts -arrows-, remove the charge air cooling circuit cooler -1- from the left.

Fig 3: Identifying Charge Air Cooling Circuit Radiator

Courtesy of AUDI OF AMERICA, LLC
