Overview - Electrical Coolant Pump, AUDI S6/S7

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

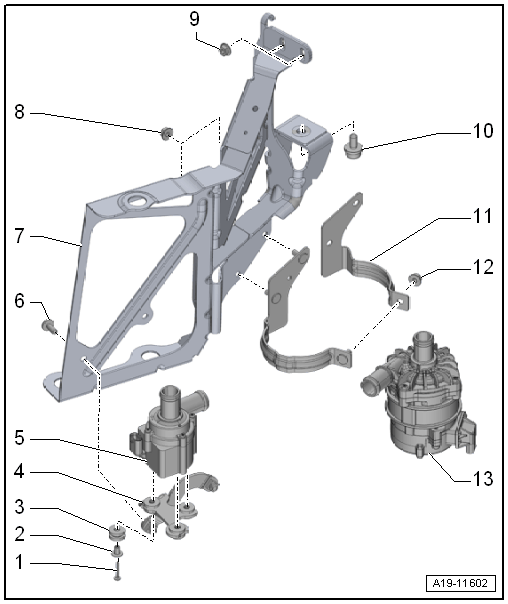

Fig 1: Identifying Electrical Coolant Pump, Audi S6/S7 Overview
GWWA19-11602Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 1.5 Nm
  2. Spacer Sleeve
  3. Grommet
  4. Bracket
    • For After-Run Coolant Pump -V51-
  5. After-Run Coolant Pump -V51-
  6. Bolt
    • 9 Nm
  7. Bracket
  8. Nut
    • 9 Nm
  9. Nut
    • 9 Nm
  10. Bolt
    • 9 Nm
  11. Retaining Bracket
  12. Nut
    • 9 Nm
  13. Charge Air Cooling Pump -V188-

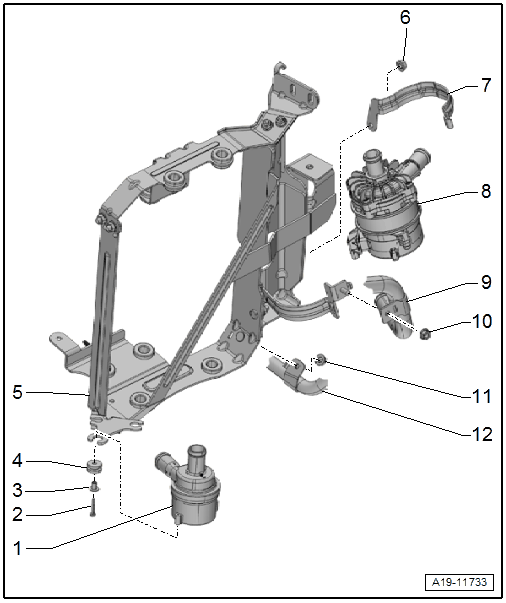

Fig 1: Identifying Electrical Coolant Pump, Audi S6/S7 Overview
GWWA19-11733Courtesy of AUDI OF AMERICA, LLC
  1. After-Run Coolant Pump -V51-
  2. Bolt
    • 1.5 Nm
  3. Spacer Sleeve
  4. Grommet
  5. Bracket
  6. Nut
    • 9 Nm
  7. Retaining Bracket
  8. Charge Air Cooling Pump -V188-
  9. Coolant Pipe
  10. Nut
    • 9 Nm
  11. Nut
    • 9 Nm
  12. Coolant Pipe
