Overview - Electric Coolant Pump, Coolant RECIRCULATION Pump

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

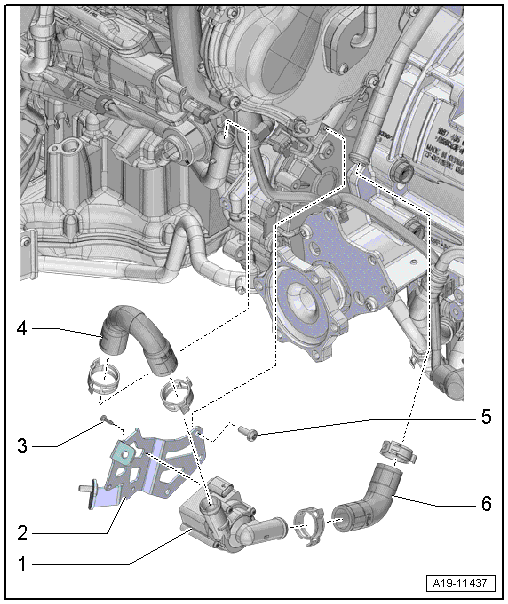

Fig 1: Identifying Electric Coolant Pump, Coolant Recirculation Pump Overview
GWWA19-11437Courtesy of AUDI OF AMERICA, LLC
  1. Engine Coolant Circulation Pump 2 -V178-
  2. Bracket
    • For Engine Coolant Circulation Pump 2 -V178-
  3. Bolt
    • 1.5 Nm
  4. Coolant Hose
  5. Bolt
    • 9 Nm
  6. Coolant Hose
