Engine Coolant Circulation Pump 2 -V178-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Install the heat shield boot at the same place.

-- Drain the coolant, refer to Draining .

-- Remove the catalytic converters, refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the right heat shield -1-.

Fig 1: Identifying Right Heat Shield And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -3- from the mount -4-.

Fig 2: Identifying Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- free up the clamp, and then remove the double bolt.

-- Remove the nut -2- and the bracket.

-- Remove the bolts -arrows- and remove the left drive axle heat shield.

Fig 3: Identifying Bolts And Left Drive Axle Heat Shield

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left drive axle from the transmission flange shaft, refer to DRIVE AXLE .

-- Remove the nut -1- and free up the hose clamp.

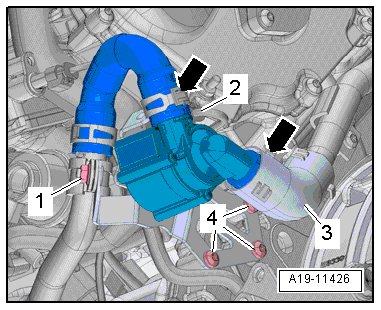

Fig 4: Identifying Nut, Connector And Hose Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Remove the bolts -4- and then remove the heat shield boot -3-.

-- Remove the coolant hoses, to do so, loosen the hose clamps -arrows-.

-- Remove the Engine Coolant Circulation Pump 2 -V178- from the bracket by freeing up the wiring harness.

-- Remove the bolts -arrows- and then remove the Engine Coolant Circulation Pump 2 -V178- item -2- from the bracket -1-.

Fig 5: Identifying Engine Coolant Circulation Pump And Bolts

Courtesy of AUDI OF AMERICA, LLC
