Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Coolant Reservoir Cap

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.

-- Remove the cap -arrow- from the coolant reservoir.

-- Remove the front left wheel spoiler, refer to WHEEL HOUSING LINER .

Audi S6/S7:

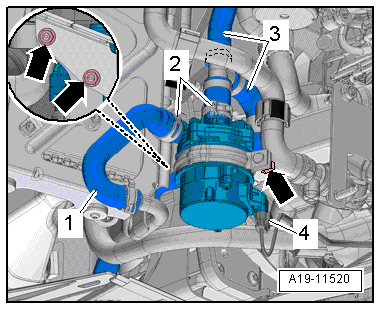

Fig 2: Location Charge Air Cooling Pump -V188-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the front left wheel housing liner in the front, refer to WHEEL HOUSING LINER .

-- Disconnect the connector -4-.

-- Disconnect the coolant hoses -1, 3- and Hose Clamps - Up to 25 mm 3094 from the Charge Air Cooling Pump -V188-.

-- Remove the nuts -arrows- and then remove the bracket.

-- Loosen the clamp -2- to remove the coolant hoses.

Audi RS6/RS7:

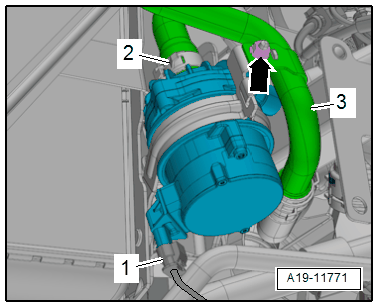

Fig 3: Identifying Nut And Coolant Line

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover end plate, refer to FRONT BUMPER .

-- Drain the coolant, refer to Draining .

-- Disconnect the connector -1-.

-- Remove the nut -arrow- and free up the coolant line -3-.

-- Loosen the clamp -2- and remove the coolant hose.

-- Clamp off the coolant hose -1- with the Hose Clamp - Up To 25 mm 3094.

-- Remove the nuts -4-.

NOTE: Use a cloth to catch any leaking coolant.

-- Loosen hose clamp -3-, remove the Charge Air Cooling Pump -V188- from the coolant hoses.

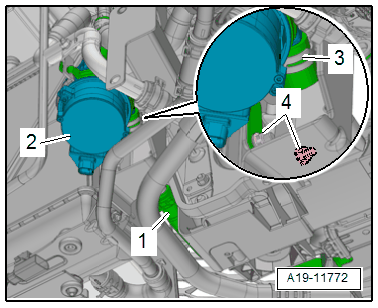

Fig 4: Identifying Hose Clamp

Courtesy of AUDI OF AMERICA, LLC
