After-Run Coolant Pump -V51-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Coolant Reservoir Cap

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.

-- Remove the cap -arrow- from the coolant reservoir.

-- Remove the front left wheel spoiler, refer to WHEEL HOUSING LINER .

Audi S6/S7:

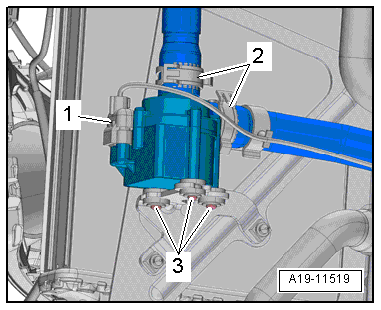

Fig 2: Location After-Run Coolant Pump -V51-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the front left wheel housing liner in the front, refer to WHEEL HOUSING LINER .

-- Disconnect the connector -1-.

NOTE: Use a cloth to catch any leaking coolant.

-- Loosen the hose clamps -2-, then clamp off the coolant hoses with the Hose Clamps - Up To 25 mm 3094 and remove them.

-- Remove the bolts -3- and the After-Run Coolant Pump -V51-.

Audi RS6/RS7:

-- Drain the coolant, refer to Draining .

-- Disconnect the connector -3-.

-- Remove the bolts -1-.

-- Loosen the clamp -2- to remove the coolant hoses.

-- Remove the After-Run Coolant Pump -V51-.

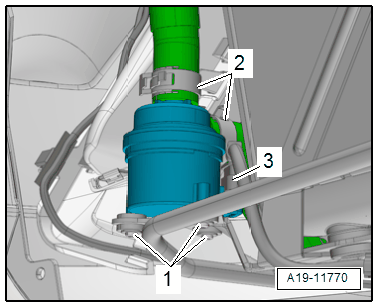

Fig 3: Identifying Bolts And Clamp

Courtesy of AUDI OF AMERICA, LLC
