Complete The Adjustment

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

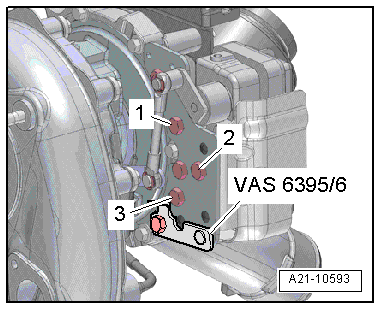

Fig 1: Identifying Bolts 1, 2 And 3

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1, 2 and 3- to 10 Nm.

-- Press the v button -4- to continue.

Fig 2: Identifying Electronic Unit (E-Box)

Courtesy of AUDI OF AMERICA, LLC

Select on the Electronic Unit (E-Box) VAS6395A/1 display:

X, XXX V
[OK]

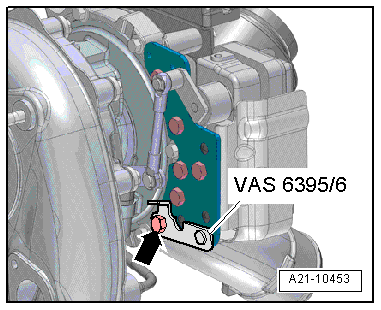

-- Remove the Bracket VAS6395/6 -arrow-.

Fig 3: Identifying Bracket VAS6395/6

Courtesy of AUDI OF AMERICA, LLC

-- Press the v button -4- to continue.

Fig 4: Identifying Electronic Unit (E-Box)

Courtesy of AUDI OF AMERICA, LLC

The Turbocharger Control Module 1 -J724- goes to the end points.

NOTE:

If "FAULT" appears in the display, then replace the new Turbocharger Control Module 1 -J724-, refer to Turbocharger Control Module 1 -J724-, REMOVING AND INSTALLING, VEHICLES WITH A TURBOCHARGER => Install the new Turbocharger Control Module 1 -J724- in reverse order of removal. .

Select on the Electronic Unit (E-Box) display:

[OK]

The adjustment is complete.

-- Disconnect the connector for the E-Positioner Service Kit VAS6395A/1.

Assembly is performed in reverse order.
