Lock Carrier, Removing And Installing, Vehicles Through My 2014: Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:

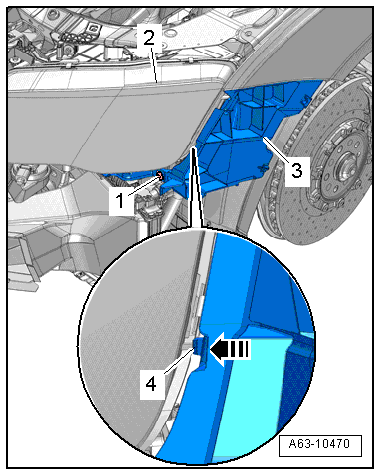

-- Press the front bumper cover mount -3- against the headlamp housing -2- -arrow-, hold it in this position and then tighten the bolt -1-.
- The rib -4- on the mount must touch the headlamp housing.
