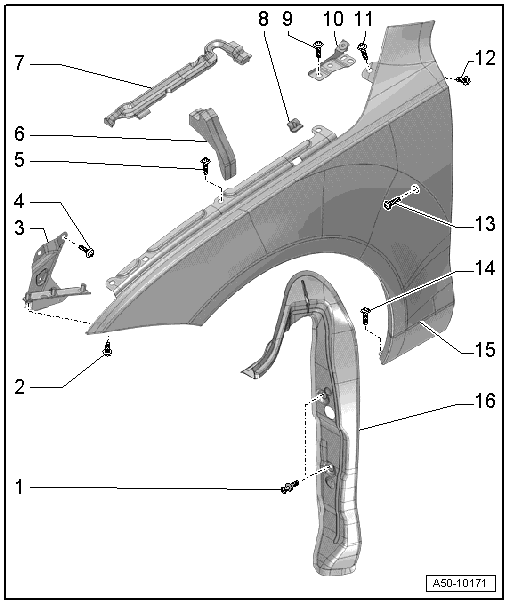

Overview - Fender
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Expanding Rivet
- Quantity: 2
- Bolt
- 10 Nm
- Lower Bracket
- For the fender
- Removing and installing. Refer to LOWER FENDER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Quantity: 2
- Bolt
- 10 Nm
- Quantity: 3
- Seal
- Inside on the fender
- Seal
- Grommet
- Driver side only, opening for the windshield washer fluid hose to the spray nozzles
- Screw
- Quantity: 2
- 10 Nm
- Upper Bracket
- For the fender
- Removing and installing. Refer to FENDER BRACKET, REMOVING AND INSTALLING, UPPER .
- Bolt
- 10 Nm
- Bolt
- 10 Nm
- Bolt
- 10 Nm
- Quantity: 2
- Bolt
- 10 Nm
- Quantity: 2
- Fender
- Removing and installing. Refer to FENDER, REMOVING AND INSTALLING .
- End Plate
- Removing and installing. Refer to END PANEL, REMOVING AND INSTALLING .
