Lower Fender Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

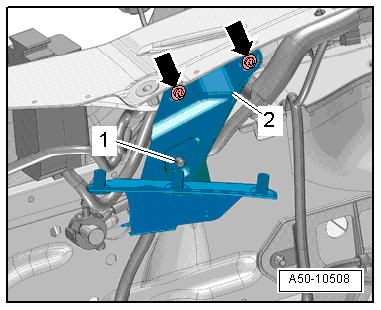

Fig 1: Identifying Lower Fender Bracket, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fender. Refer to FENDER, REMOVING AND INSTALLING .

-- Remove the headlamp housing. Refer to[For engine(s) CTUA,CEUC,CRDB,CGXB,CPNB] Removal and Installation .

-- Left side: free up the wiring harness -1- and the windshield washer fluid hose for the headlamp washer system.

-- Right side: free up the wiring harness.

-- Remove the bolts -arrows-.

-- Remove the lower bracket -2-.
