Fender, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

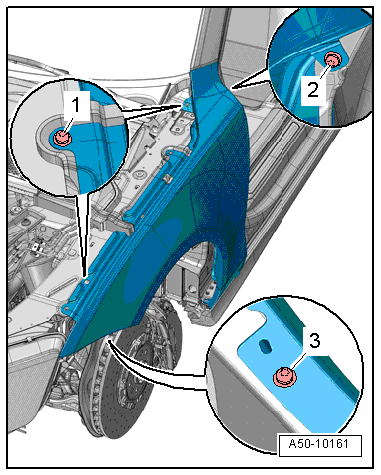

Fig 1: Identifying Fender, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the end plate. Refer to END PANEL, REMOVING AND INSTALLING .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the front bumper cover mount. Refer to FRONT BUMPER COVER MOUNT, REMOVING AND INSTALLING .

-- Remove the bolts -1, 2, and 3-.

-- Remove the bolts -4 to 7-.

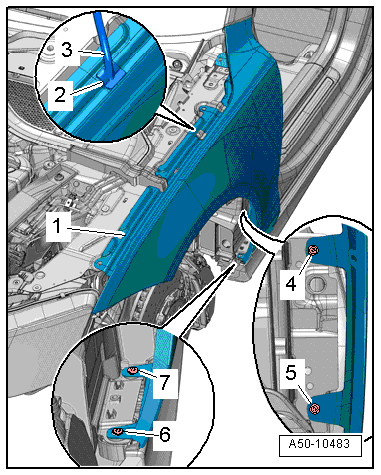

Fig 2: Locating Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fender -1-.

-- Left side: open the clamp and and remove the windshield washer fluid hose from the windshield washer pump.

-- Remove the windshield washer fluid hose and grommet -3- from the fender.
