End Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

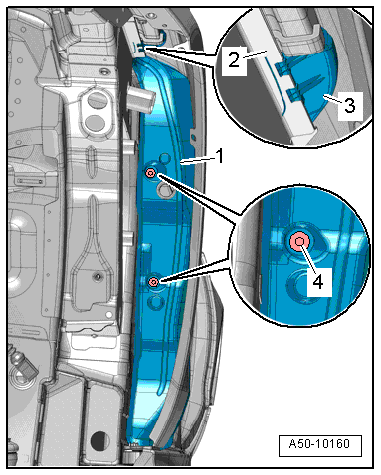

Fig 1: Identifying End Panel, Removing And Installing
GWWA50-10160Courtesy of AUDI OF AMERICA, LLC

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Left: Remove the windshield washer fluid reservoir. Refer to REMOVAL AND INSTALLATION .

-- Remove the expanding rivets -4-.

-- Remove the guides on the upper end plate -3- on the fender flange -2-.

-- Remove the end plate -1-.
