GENERATOR OVERVIEW (CGXB and CTUA)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion, refer to CONTACT CORROSION .

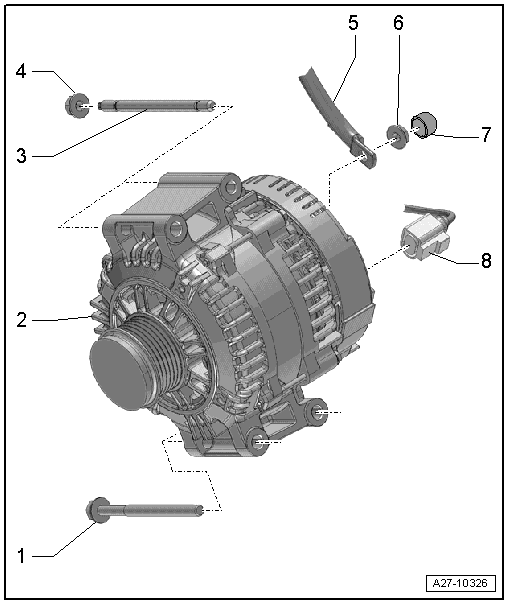

Generator mount with bolts, threaded pins and nuts
- Screw
- 20 Nm
- Quantity 2
- Generator
- Removing and installing, refer to GENERATOR .
- Threaded Pin
- 10 Nm
- Quantity 2
- Nut
- 20 Nm
- Quantity 2
- Terminal 30/B+
- Nut
- 16 Nm
- Cap
- Electrical Connector
