GENERATOR OVERVIEW (CEUC and CRDB)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

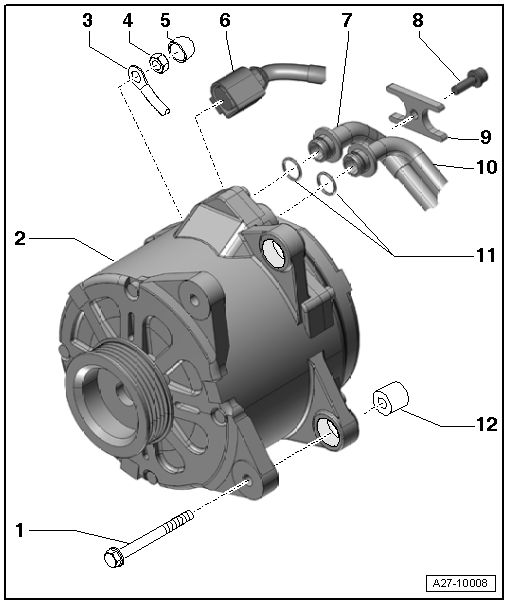

Fig 1: Generator Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 23 Nm
Generator
- Removing and installing:
  - For vehicles with a 4, 0l TFSI engine, Audi S7, refer to GENERATOR .
  - For vehicles with a 4, 0l TFSI engine, Audi RS7, refer to GENERATOR .
Terminal 30/B+
Nut
- 16 Nm
Cap
- Depending on the vehicle equipment level
Connector
Coolant Return Pipe
Bolt
- 9 Nm
Retaining Plate
- For the coolant pipes
Coolant Supply Pipe
O-rings
- Replace
Bushing
- Because the clamping force of a tight socket is too low despite the correct torque, loosen sockets
