Battery Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Observe notes on contact corrosion, refer to CONTACT CORROSION .

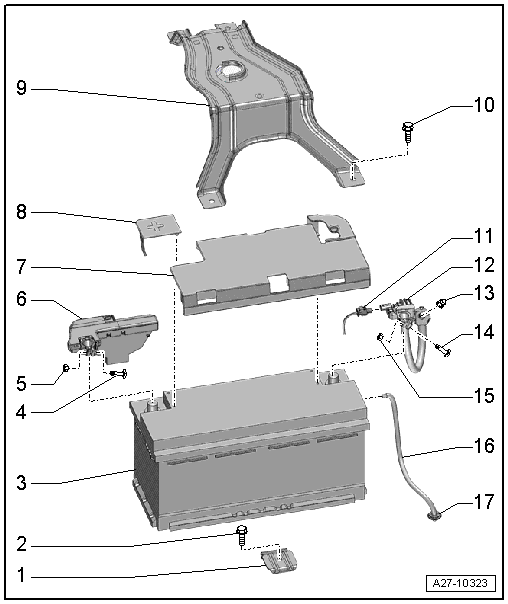

Fig 1: Identifying Battery Overview

Courtesy of AUDI OF AMERICA, LLC

Retaining Bracket
Screw
- 18 Nm
Battery
- Disconnecting and connecting, refer to BATTERY, DISCONNECTING AND CONNECTING .
- Removing and installing, refer to BATTERY .
Screw
Nut
- 5 Nm
Main Fuse Panel
- Disconnecting and connecting, refer to BATTERY .
- Overview, refer to PLENUM CHAMBER E-BOX, WIRE JUNCTION, FUSE HOLDER AND BATTERY OVERVIEW .
Negative Terminal Cover
Positive Terminal Cover
Retainer
- For the vehicle tool kit cover.
Screw
- 18 Nm
- Quantity 4
Electrical Wire
- For the Battery Monitoring Control Module -J367-.
- Follow the sequence when connecting the ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
Ground Wire With Battery Monitoring Control Module -J367-
- Disconnecting and connecting, refer to BATTERY, DISCONNECTING AND CONNECTING .
- Removing and installing, refer to GROUND CABLE WITH BATTERY MONITORING CONTROL MODULE .
Nut
Screw
Nut
- 5 Nm
Central Venting System Hose
Grommet
- For the hose for the central venting system.
