Auxiliary Heater Heating Element -Z35-, Design And Function
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, 2014 Audi RS 7, and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Design and Function

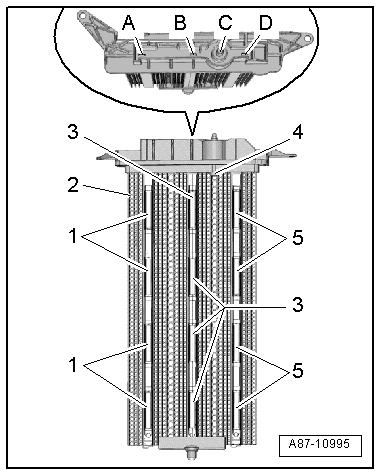

- The Auxiliary Heater Heating Element -Z35- is comprised of several layers of resistance elements -1, 3 and 5-. These can achieve a heating output of approximately 1000 W via all three inputs -A, B and D- when simultaneously activated. These resistance elements have a positive temperature coefficient (the resistance increases with the temperature and thus the current consumption and the heating output decrease).
- The resistance elements -1, 3 and 5- are activated via the contacts -A, B and D- on the housing, while the current flows through the Ground (GND) connection -C-.
- The Auxiliary Heater Heating Element -Z35- is designed so that a current greater the 35 A can flow via the contacts -A, B and D- when switched on. Immediately after switching on, the resistance in the resistance heating elements -1, 3 and 5- increases and the current decreases.
- To reach the maximum heating output of approximately 1000 W (3 x 333 W), the resistance heating elements temperature must be low and the generator must deliver enough current.
- The wire -B- provides the voltage to the resistance heating elements -3- via the Low Heat Output Relay -J359-, refer to appropriate System Wiring Diagram.
- Via the High Heat Output Relay -J360- the voltage via lines -A, D- to the resistance heating elements -1 and 5-, refer to appropriate System Wiring Diagram.
- The resistance of the heating elements depends on the temperature; the resistance is 0.2 to 5 Ω measured between the connections -A, B and D- and the GND connection -C-.
