Right Flange Shaft, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi S7, 2017 Audi S7, and 2016 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
- Secure the transmission on the Engine And Transmission Holder :VAS6095 . Refer to SECURING ON ENGINE AND TRANSMISSION HOLDER .
-- Place the Used Oil Collection and Extraction Unit :SMN372500 under the transmission.

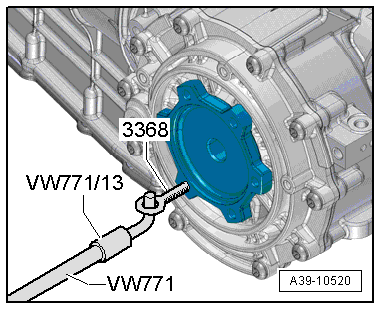

-- Install the Lifting Eyebolt :3368 into a threaded hole in the right flange shaft.
-- Position the Slide Hammer Set :VW771 with the :VW771/13 on the Lifting Eyebolt :3368 and remove the flange shaft.
