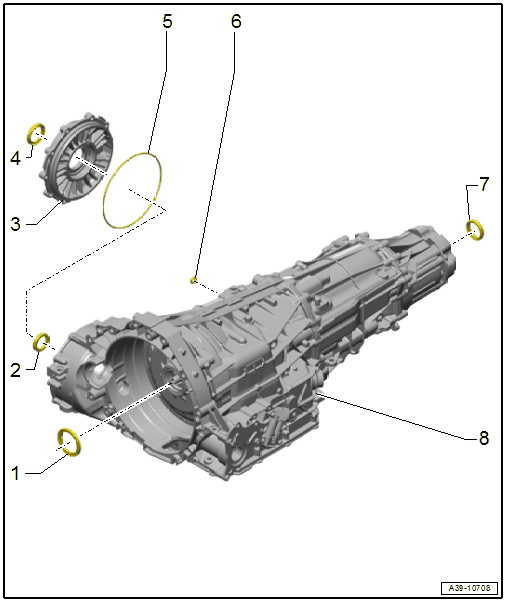

Overview - Seals
WARNING: This page is about a different car, the 2018 Audi S7, 2017 Audi S7, and 2016 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- For the input shaft
- Replacing. Refer to INPUT SHAFT SEAL, REPLACING .
- Left Seal
- For the flange shaft
- Replacing. Refer to LEFT SEAL, REPLACING .
- Front Final Drive Cover
- Right Seal
- For the flange shaft
- Replacing. Refer to RIGHT SEAL, REPLACING .
- O-ring
- On the front final drive cover
- Replacing is only possible with the transmission removed.
- Seal
- For the selector shaft
- Replacing. Refer to SELECTOR SHAFT SEAL, REPLACING .
- Seal
- For the transmission output shaft.
- Replacing. Refer to TRANSMISSION OUTPUT SHAFT SEAL, REPLACING
- Transmission
