Procedure For All E-Boxes
-- Disconnect the Turbocharger Control Module 1 -J724- connector.
-- Connect the Connection Cable :VAS6395A/2 to the Turbocharger Control Module 2 -J724- and to the Turbo E-Positioner Service Kit :VAS6395 .
Display on the Turbo E-Positioner Service Kit :VAS6395 :
-- Push the button ↓ -item 6- two times, so that the MANUAL mode is selected.
-- Confirm the MANUAL mode with the v button -item 4-.
- 2. NEXT [>]
- >3. MANUAL
-- Remove the bolt -1-.
The other bolts visible in the illustration must not be removed.
-- Attach the Turbo E-Positioner Service Kit - Bracket :VAS6395 /7 to the center opening in the bracket for the Turbocharger Control Module 1 -J724- and tighten the bolt to -arrow- 7 Nm.
The centering pins on the bracket :VAS6395 /7 must engage in the bracket opening for the Turbocharger Control Module 1 -J724-.
Determine the voltage value:

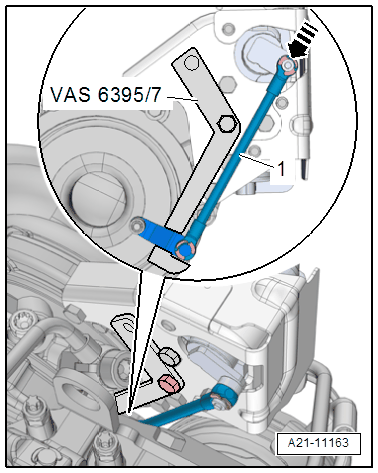

-- Bring up the coupling rod -1- by pressing the button ↑ -item 5- on the Turbo E-Positioner Service Kit :VAS6395 on the Turbo E-Positioner Service Kit - Bracket :VAS6395 /7 .
If the control unit remains stationary when operating, support it with light finger pressure -arrow-.
Display on the Turbo E-Positioner Service Kit :VAS6395 :
- X, XXX V
-- Note the voltage value -1-.
-- Drive back the coupling rod -1- by pressing the button ↓ -item 6- on the Turbo E-Positioner Service Kit :VAS6395 from the Turbo E-Positioner Service Kit - Bracket : VAS6395 /7 .
-- Determine the "voltage value" step, repeat it two times and note the voltage value.
To determine the voltage value the control module must be supported using the finger pressure, for each repeat of the coupling rod -3-, must be supported with the same finger pressure -arrow-.
-- Determine the average from the three notes measured values.

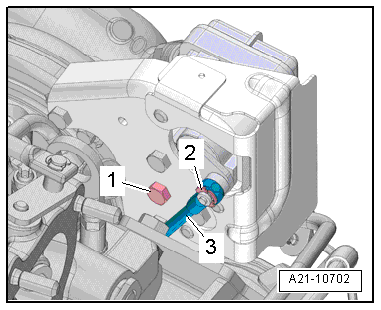

-- Unclip the lock washer.

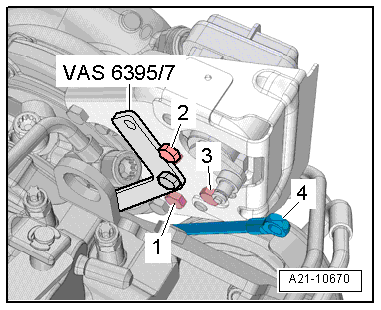

-- Disengage the coupling rod -4- from the Turbocharger Control Module 1 - J724- and move downward.
Do not bend the coupling rod.
-- Remove the bolts -1, 2 and 3- and dispose of them.
The other bolts visible in the illustration must not be removed.
-- Remove the old Turbocharger Control Module 1 -J724- and dispose of it.
-- Install the new Turbocharger Control Module 1 -J724- in reverse order of removal.
Only change the coupling rod that is present in the replacement part kit if necessary.

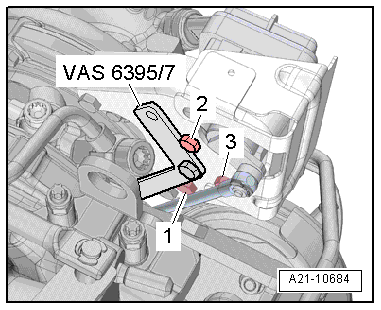

-- Install the new M6 x 15 bolts -1, 2 and 3- with the narrow shaft.
-- Only tighten the bolts by hand.
- The Turbocharger Control Module 1 -J724- must contact the retaining plate without play, but it must be possible to move it by hand.

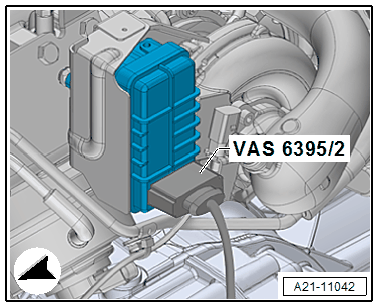

-- Connect the Turbo E-Positioner Service Kit - Wire Set :VAS6395/2 with the adapter to the Turbocharger Control Module 1 -J724-
-- Adjust the new Turbocharger Control Module 1 -J724- to + 0.020V - 0.030V to the previous determined value.
- To adjust the voltage value, press the button ↑ -item 5- or ↓ -item 6-.
Display on the Turbo E-Positioner Service Kit :VAS6395 :
- X, XXX V

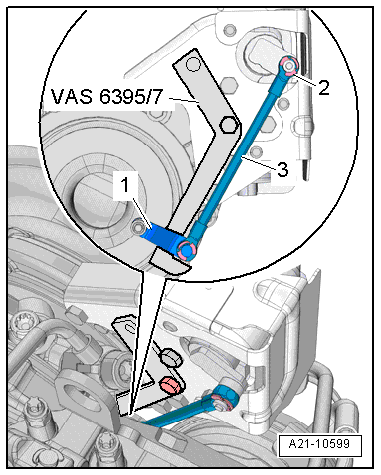

-- Insert the coupling rod -3-.
-- Install the lock washer -2-.
- The lock washer must engage audibly.
-- Not turn the Turbocharger Control Module 1 -J724- so that the lever -1- contacts the Turbo E-Positioner Service Kit - Bracket :VAS6395/7 .
-- Tighten the bolts -1, 2 and 3- to 5 Nm.
Adjust the voltage value as follows on the new Turbocharger Control Module 1 -J724-.
An incorrectly adjusted Turbocharger Control Module 1 - J724- can cause noises and handling complaints.
-- Bring up the coupling rod -3- by pressing the button ↑ -item 5- on the Turbo E-Positioner Service Kit :VAS6395 on the Turbo E-Positioner Service Kit - Bracket :VAS6395 /7 .
Display on the Turbo E-Positioner Service Kit :VAS6395 :
- X, XXX V
-- Compare the voltage value -1- to determine the average.
The voltage value of the new Turbocharger Control Module 1 must not differ more than +/- 0.020V from the average of the old control module.
-- Drive back the coupling rod -3- by pressing the button ↓ -item 6- on the Turbo E-Positioner Service Kit :VAS6395 from the Turbo E-Positioner Service Kit - Bracket : VAS6395 /7 .
Voltage value outside of the tolerance range:
-- Loosen the screws -1, 2 and 3- just enough so that is possible to move the Turbocharger Control Module 1 -J724- with slight resistance.
-- Move the Turbocharger Control Module 1 -- according to the variation directions, tighten the bolts -1, 2 and 3- to 5 Nm.
- Voltage value to high, push the Turbocharger Control Module 1 -- downward.
- Voltage value to low, push the Turbocharger Control Module 1 -- upward.
Determine the voltage value with the new Turbocharger Control Module 1 -J724-.
-- Bring up the coupling rod -3- by pressing the button ↑ -item 5- on the Turbo E-Positioner Service Kit :VAS6395 on the Turbo E-Positioner Service Kit - Bracket :VAS6395 /7 .
Display on the Turbo E-Positioner Service Kit :VAS6395 :
- X, XXX V
-- Compare the voltage value -1- to determine the average.
-- Drive back the coupling rod -3- by pressing the button ↓ -item 6- on the Turbo E-Positioner Service Kit :VAS6395 from the Turbo E-Positioner Service Kit - Bracket : VAS6395 /7 .
Voltage value outside of the tolerance range
-- Adjust the Turbocharger Control Module 1 -J724- again. Refer to Turbocharger Control Module 1 -J724-, REMOVING AND INSTALLING, VEHICLES WITH TWO TURBOCHARGER MANUAL MODES .
Tolerance range without tension
-- Tighten the bolts -1, 2 and 3- to 10 Nm.
-- Check the voltage value again.
Display on the Turbo E-Positioner Service Kit :VAS6395 :
- X, XXX V
Voltage value outside of the tolerance range
-- Adjust the Turbocharger Control Module 1 -J724- again. Refer to Turbocharger Control Module 1 -J724-, REMOVING AND INSTALLING, VEHICLES WITH TWO TURBOCHARGER MANUAL MODES .
Tolerance range without tension

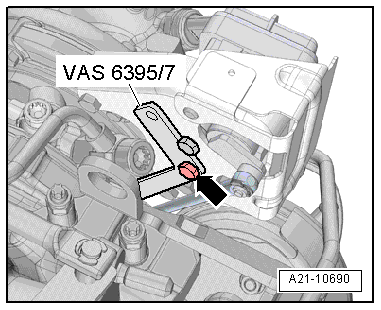

-- Remove the bolt -arrow- and remove the bracket :VAS6395 /7 .
-- Re-install the bolt and tighten ) TURBOCHARGER, VEHICLES WITH TWO TURBOCHARGERS-Bolt.
- The adjustment is complete.
-- Disconnect the connector for the Turbo E-Positioner Service Kit :VAS6395 .
Assembly is performed in reverse order.
