Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S7, 2018 Audi RS 7, 2017 Audi S7, 2017 Audi RS 7, and 2016 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Follow all the rules of cleanliness. Refer to CLEAN WORKING CONDITIONS .
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
WARNING:
Fire hazards and risk of damage for a faulty engine cover.
- The engine cover must be always be installed before the hood is closed.
- The engine may neither be started nor driven without an engine cover.
Audi S6/S7
-- Disconnect the connector -2-.
-- Remove the bolts -1-, and remove the Charge Air Pressure Sensor -G31-.
Audi RS6/RS7
-- Disconnect the connectors -2-.
-- Remove the bolts -arrows- and then free up the Turbocharger Recirculation Valve -N249- with the air guide.
NOTE:
Ignore -1 and 3-.

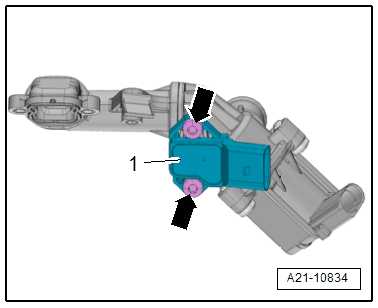

-- Remove the bolts -arrows-, and remove the Charge Air Pressure Sensor -G31- -1-.
