Tunnel CROSSMEMBER, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi S7, 2017 Audi S7, and 2016 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear noise insulation -2-. Refer to NOISE INSULATION .
-- Mount the :T10337 on the :VAS6931 and attach it under the transmission.
-- Raise the transmission slightly.
NOTE:
If the tunnel crossmember was removed in or to check or add transmission fluid, then it is necessary to bring the transmission back into its installed position after removing the tunnel crossmember. This is the only way the transmission fluid level can be adjusted correctly. Refer to TRANSMISSION FLUID LEVEL, CHECKING .
WARNING:
There is the risk of an accident.
- The :VAS6931 may only be used during assembly and must not sit unsupervised under the vehicle.

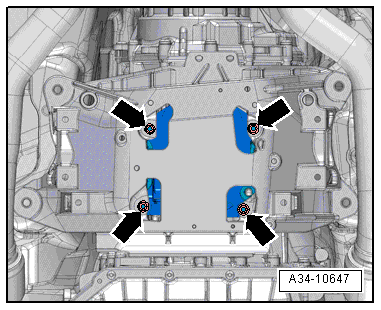

-- Remove the bolts from the tunnel crossmember -arrows-.
-- Remove the nuts -arrows- and the tunnel crossmember.
