Mass Airflow Sensor -G70-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2016 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the clamps -arrows- and remove the air guide pipe -1-.

Courtesy of AUDI OF AMERICA, LLC

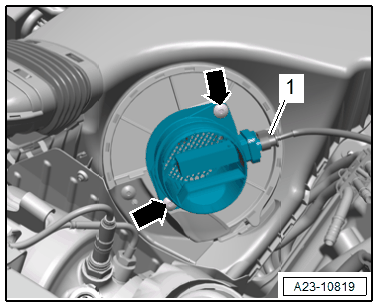

Air Guide Pipe Version 1

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolts -arrows- and the Mass Airflow Sensor -G70-.

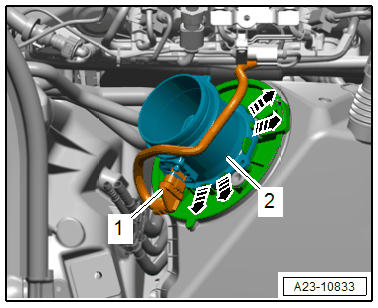

Air Guide Pipe Version 2

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Release the catches in direction of -arrows- all around and remove the Mass Airflow Sensor -G70- -2-.
