Reducing Agent Tank, Removing And Installing: Installing

WARNING: This page is about a different car, the 2016 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

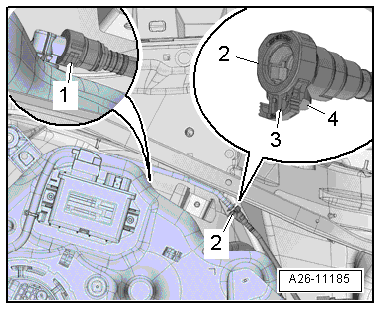

-- Push the filling line -1- and vent line -2- onto the line connection until it engages audibly.

-- Pull to make sure the connection is engaged correctly.

-- To secure press the retaining tab -3-.

-- Make sure the lines are clipped to the tank.

NOTE:

Ignore -4-.

-- Adapting adaptation value after draining reducing agent or replacing components. Refer to SCR-SYSTEM ADAPTATION VALUE, ADAPTING .
