Reducing Agent Tank, Draining: Procedure

WARNING: This page is about a different car, the 2016 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

The reducing agent can cause skin irritation.

Always observe the safety precautions when working with reducing agent. Refer to SCR SYSTEM SAFETY PRECAUTIONS .
Wear protective eyewear.

Danger due to reducing agent leaking out.

To prevent large amounts of reducing agent from leaking out when opening the metering line, wait for the recirculation process to complete. Refer to SCR SYSTEM SAFETY PRECAUTIONS => Reducing Agent, Automatic Regeneration .

-- Turn off the ignition.

-- Open the fuel filler door.

-- Remove cover -2- from the reducing agent filler tube

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

-- Remove bolts and nuts -arrow-, and remove the tank cover -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Place the drip tray underneath.

NOTE:

To catch escaping reducing agent place a clean cloth under the separation point.

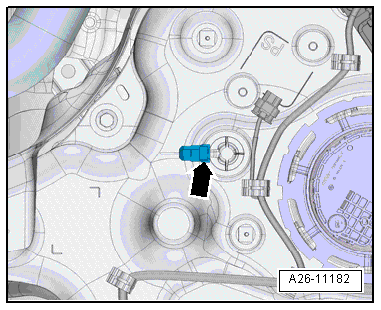

-- Remove cap -arrow-, by pressing the release button, drain the reducing agent into the drip tray, and remount the cap.

Courtesy of AUDI OF AMERICA, LLC

After Filling, the Following Steps Must Be Performed.

-- Adapting adaptation value after draining reducing agent or replacing components. Refer to SCR-SYSTEM ADAPTATION VALUE, ADAPTING .
