Reducing Agent Metering System Control Module -J880-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2016 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition.
-- Remove bolts and nuts -arrows-, and remove the cover for the tank.
 Courtesy of AUDI OF AMERICA, LLC
|

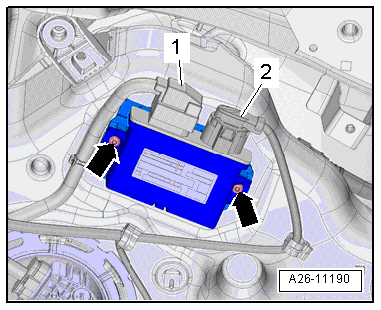

-- Remove the bolts -arrows- and Reducing Agent Metering System Control Module -J880-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Disconnect the connectors -1 and 2-.
