Reducing Agent Delivery Module, Removing And Installing: Removing
WARNING: This page is about a different car, the 2016 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
The reducing agent can cause skin irritation.
- Always observe the safety precautions when working with reducing agent. Refer to SCR SYSTEM SAFETY PRECAUTIONS .
-- Remove the reducing agent tank. Refer to REDUCING AGENT TANK, REMOVING AND INSTALLING .

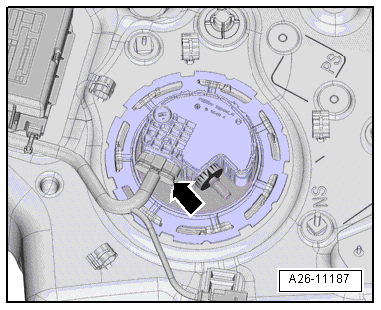

-- Disconnect the connector -arrow-.
-- Seal the open lines and connections with clean plugs from the : VAS6122 .
-- Release the locking ring -1- using the : T40268 counter clockwise and remove.
-- Remove the heating reservoir with the Reducing Agent Pump -V437- from the tank.
