OVERVIEW - Reducing Agent Metering System Control Module -J880-

WARNING: This page is about a different car, the 2016 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Component location: the Reducing Agent Metering System Control Module -J880- is located under the tank.

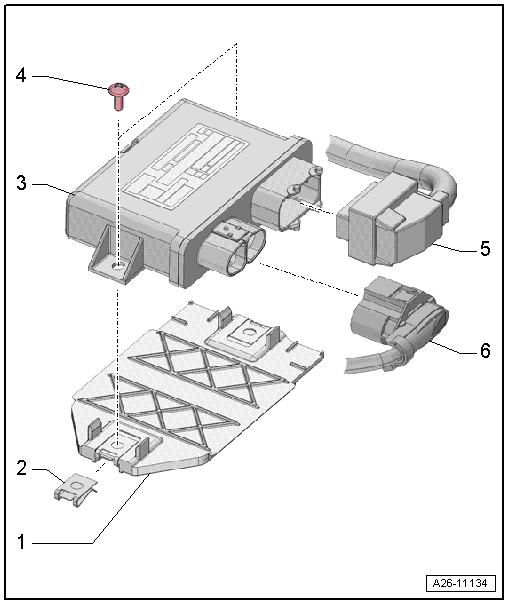

Fig 1: Reducing Agent Metering System Control Module Exploded View
GWWA26-11134Courtesy of AUDI OF AMERICA, LLC
  1. Base Plate
    • For Reducing Agent Metering System Control Module -J880-
    • Component of the tank
  2. Clip Nut
  3. Reducing Agent Metering System Control Module -J880-
  4. Bolt
    • 4.5 Nm
  5. Connector
  6. Connector
