Right Exhaust Manifold, Removing And Installing: Removing

Vehicles with A Turbocharger

-- Remove the particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .

Continuation for All Vehicles

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the front noise insulation. Refer to NOISE INSULATION .

-- Remove the air guide hose from the air guide pipe by loosening the hose clamp -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with a Turbocharger

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 3-.

-- Loosen the clamp -1- and remove the air guide hose.

-- Move the guide pipe to the side.

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen and remove the nuts in the following sequence: -8 through 1-. Remove the exhaust manifold.

Fig 1: Exhaust Manifold Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Vehicles with Two Turbochargers

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2-.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right air guide pipe -2- along with the intermediate pipe -1- from the turbocharger assembly and set aside.

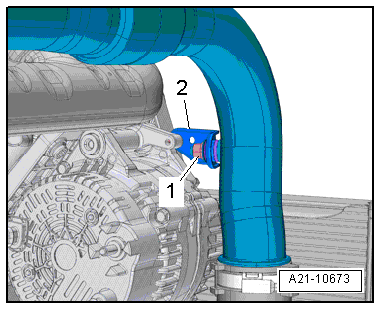

-- Remove the nut -1- and remove the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right air duct pipe toward the rear.

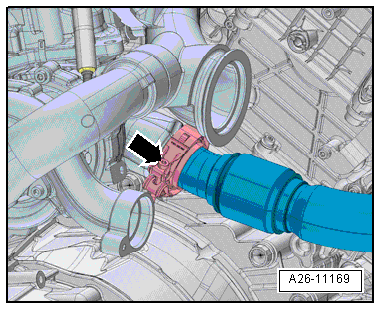

-- Loosen the clamp -arrow- and remove it.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and the exhaust manifold.

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles

Fig 2: Exhaust Manifold Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Loosen and remove the nuts in the following sequence: -8 through 1-. Remove the exhaust manifold.
