Catalytic Converter, Removing And Installing, Vehicles With Two Turbochargers: Removing

-- Remove the steering intermediate shaft from the steering gear and then push the splines into each other. Refer to STEERING COLUMN .

-- Remove the front exhaust pipe. Refer to EXHAUST PIPE, REMOVING AND INSTALLING, VEHICLES WITH TWO TURBOCHARGERS. .

-- Remove the heated oxygen sensor. Refer to HEATED OXYGEN SENSOR, REMOVING AND INSTALLING .

-- Remove the Exhaust Gas Temperature Sensor 2 -G448-. Refer to Exhaust Gas Temperature Sensor 2 -G448-, INSTALLING AND REMOVING, VEHICLES WITH TWO TURBOCHARGERS .

-- Remove the subframe crossbrace. Refer to SUBFRAME .

-- Remove bolts -arrows- and then remove the heat shield.

Courtesy of AUDI OF AMERICA, LLC

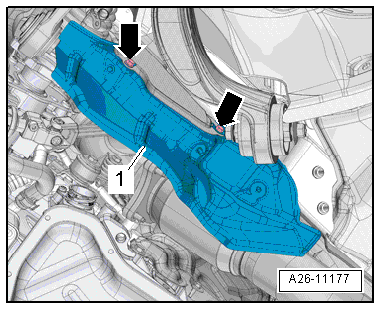

-- Remove the left longitudinal member bolts -arrows- and remove the heat shield -1-.

Courtesy of AUDI OF AMERICA, LLC

-- If equipped remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-, and set aside the Transmission Fluid Cooling Valve -N509- with the coolant hoses -2- still attached.

-- Remove the bolts and nuts -arrows-, and remove the heat shield -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Exhaust Gas Temperature Sensor 3 -G495- -1- and pressure pipe -3- for the Differential Pressure Sensor -G505-.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with an SCR System

Courtesy of AUDI OF AMERICA, LLC

-- Remove the NOx Sensor -G295- -arrow- free up and set to the left side.

Continuation for All Vehicles

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows-.

-- Remove the bolts -1 and 2- and remove the bracket.

Courtesy of AUDI OF AMERICA, LLC

Vehicles with an SCR System

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left driveshaft cover -1- in the wheel housing.

-- Remove the bolts -arrows- and remove the left drive axle heat shield.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1 and 2-. If required disengage the catalytic converter with a second technician from the turbocharger.

Courtesy of AUDI OF AMERICA, LLC

-- To improve the accessibility for the next step, push the catalytic converter to the side.

• Position -1- = Catalytic Converter Heater 1 -Z119-
• Position -2- = Catalytic Converter Heater 2 -Z120-

-- Remove the connection for the Catalytic Converter Heater 1 -Z119- and Catalytic Converter Heater 2 -Z120- with the : T40317  .

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles

-- Remove the catalytic converter.
