Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Connect the airbag connector to the lower No. 2 instrument panel airbag assembly.

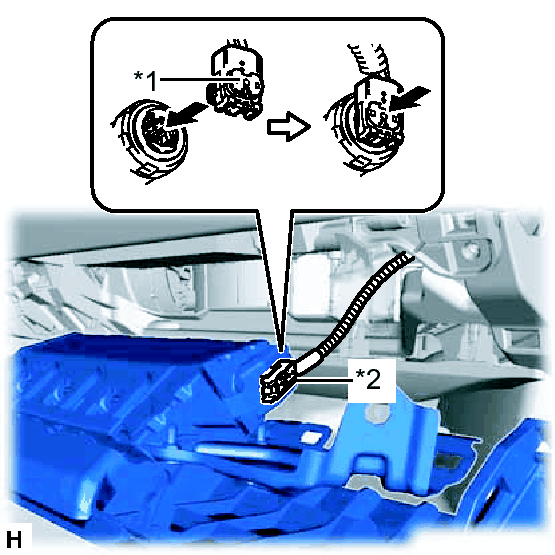

      Fig 1: Identifying Airbag Connector Lock
      GTY410218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

      TEXT IN ILLUSTRATION

      *1 Airbag Connector Lock
      *2 Airbag Connector
    4. Push in the airbag connector lock to install the airbag connector.
    5. Engage the 5 claws and 2 guides to temporarily install the lower No. 2 instrument panel airbag assembly.
    6. Install the 3 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Confirm that the lower No. 2 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

  2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION [08/2013 - ] - Step 16
  3. INSTALL INSTRUMENT SIDE PANEL RH  . Refer to INSTALLATION [08/2013 - ] - Step 17
  4. INSTALL FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure for the RH side and LH side. Refer to INSTALLATION [08/2013 - ] - Step 31 .

  5. INSTALL COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure for the RH side and LH side. Refer to INSTALLATION [08/2013 - ] - Step 32 .

  6. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and LH side. Refer to INSTALLATION [08/2013 - ] - Step 33 .

  7. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .

  8. INSTALL LUGGAGE TRIM SERVICE HOLE COVER  . Refer to INSTALLATION [08/2013 - ] - Step 3
  9. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [08/2013 - ]

  10. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM [08/2013 - ]
