Pinpoint Test D : IWE Solenoid - Electrical Fault

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

D1 CHECK FOR TCCM DTCS

Enter the following diagnostic mode: TCCM KOEO Self-Test.

Are any DTCs present?

Yes	For DTC C1979:11, GO to D3. For DTC C1979:12, GO to D2. For DTC C1979:13, GO to D4 For all other DTCs, REFER to DTC Chart: TCCM .

No	This diagnostic test does not apply. GO to Pinpoint Test A

D2 CHECK THE IWE SOLENOID CONTROL CIRCUIT FOR A SHORT TO VOLTAGE

Ignition OFF.

Disconnect IWE Solenoid C1291 .

Disconnect Transfer Case C2371A .

Measure:

Positive Lead	Measurement / Action	Negative Lead
C1291-2	Courtesy of FORD MOTOR COMPANY	Ground

Is any voltage present?

Yes	REPAIR the circuit. CLEAR the DTCs.

GO to D4

D3 CHECK THE IWE SOLENOID CONTROL CIRCUIT FOR A SHORT TO GROUND

Ignition OFF.

Disconnect IWE Solenoid C1291 .

Disconnect TCCM C2371A .

Ignition ON

Measure:

Positive Lead	Measurement / Action	Negative Lead
C1291-2	Courtesy of FORD MOTOR COMPANY	Ground

Is the resistance greater than 10, 000 ohms?

Yes

GO to D4

No	REPAIR the circuit.

D4 CHECK THE IWE SOLENOID RESISTANCE

NOTE: If the temperatures (either ambient or in the engine compartment) are exceptionally high, a higher than normal resistance reading could result. A lower temperature could result in a lower resistance reading.

Ignition OFF.

Disconnect IWE Solenoid C1291 .

Measure:

Positive Lead	Measurement / Action	Negative Lead

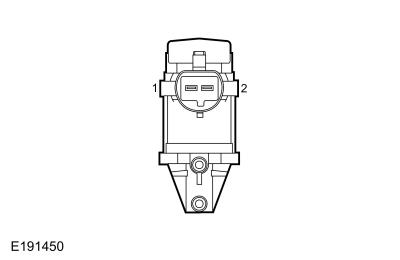

Courtesy of FORD MOTOR COMPANY Pin 1, component side.	Courtesy of FORD MOTOR COMPANY	Courtesy of FORD MOTOR COMPANY Pin 2, component side.

Is the resistance between 44 and 70 ohms?

Yes

GO to D5

No	INSTALL a new IWE solenoid. CLEAR the DTCs.

D5 CHECK FOR VOLTAGE TO THE IWE SOLENOID

Ignition OFF.

Connect TCCM C2371A .

Ignition ON

Measure:

Positive Lead	Measurement / Action	Negative Lead
C1291-1	Courtesy of FORD MOTOR COMPANY	Ground

Is the voltage greater than 11 volts?

Yes

GO to D6

No	CHECK BJB fuse 29 (10A). If OK, REPAIR the open circuit. If not OK, Refer to the Wiring Diagram Information to identify possible causes of the circuit short. CLEAR the DTCs.

D6 CHECK THE IWE SOLENOID CONTROL CIRCUIT FOR AN OPEN

Ignition OFF.

Disconnect IWE Solenoid C1291 .

Disconnect TCCM C2371A .

Measure:

Positive Lead	Measurement / Action	Negative Lead
C1291-2	Courtesy of FORD MOTOR COMPANY	C2371A-6

Is the resistance less than 3 ohms?

Yes

GO to D7

No	REPAIR the circuit. CLEAR the DTCs.

D7 CHECK FOR CORRECT TCCM OPERATION

Ignition OFF.

Disconnect TCCM Connectors..

Check for the following:
- corrosion (install new connector or terminals - clean module pins)
- damaged or bent pins - install new terminals/pins
- pushed-out pins - install new pins as necessary

Connect TCCM Connectors and make sure they are seated and latched correctly..

Enter the following diagnostic mode: TCCM KOEO Self-Test.

Did the DTC reset?

Yes	INSTALL a new TCCM. REFER to: Transfer Case Control Module (TCCM) .

No	The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector. ADDRESS the root cause of the connector or pin issues.
