Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Both sides
- 1.
Remove the windshield wiper pivot arms. For additional information, refer to
Wipers and Washers
.
LH side
- 2.

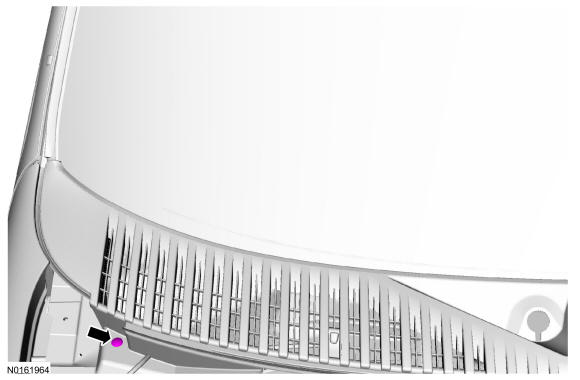

Remove the pin-type retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

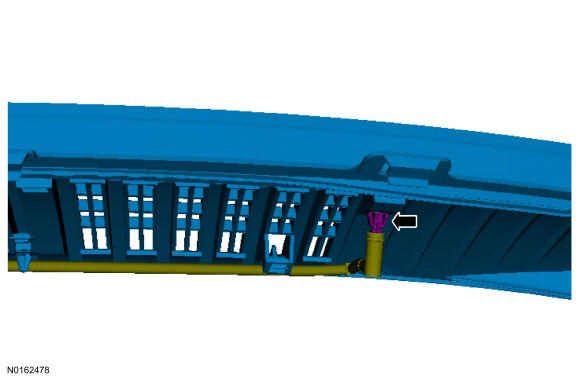

Lift the cowl trim panel to release the underside pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

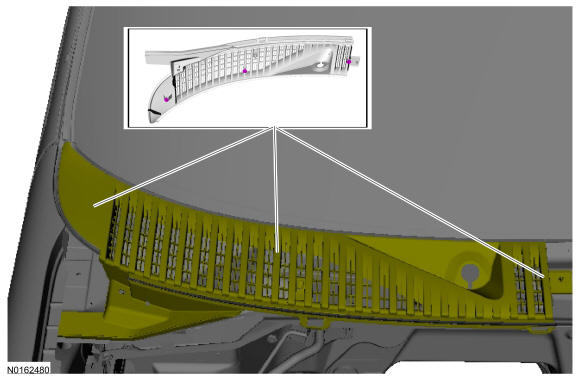

Disconnect the windshield washer tube and remove the cowl panel grille.
 Courtesy of FORD MOTOR COMPANY
|
RH side
- 5.

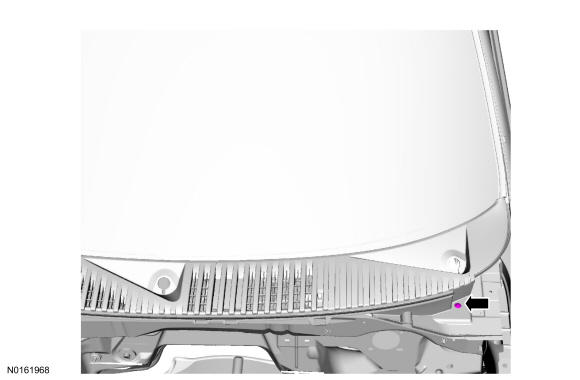

Remove the pin-type retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 6.

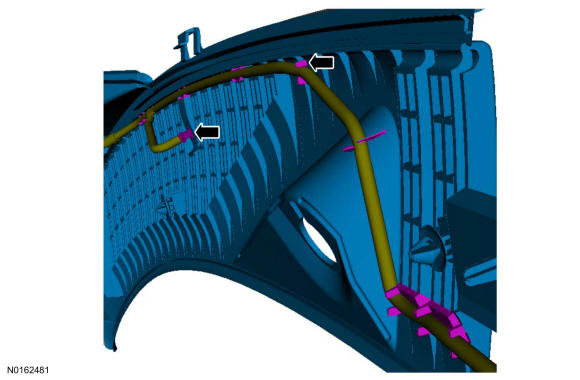

Lift the cowl trim panel to release the underside pin-type retainers.
 Courtesy of FORD MOTOR COMPANY
|
- 7.

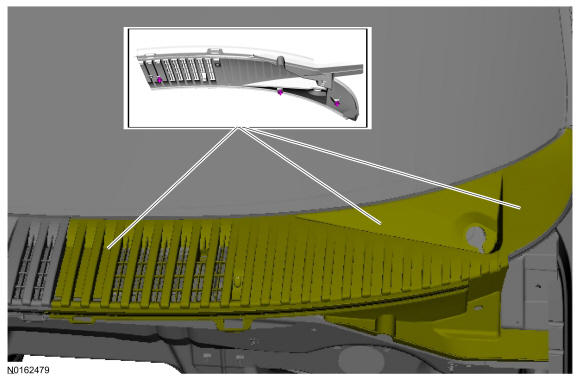

Disconnect the windshield washer tube and remove the cowl panel grille.
 Courtesy of FORD MOTOR COMPANY
|
Both sides
- 8.
To install, reverse the removal procedure.
