Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with selector lever

1.

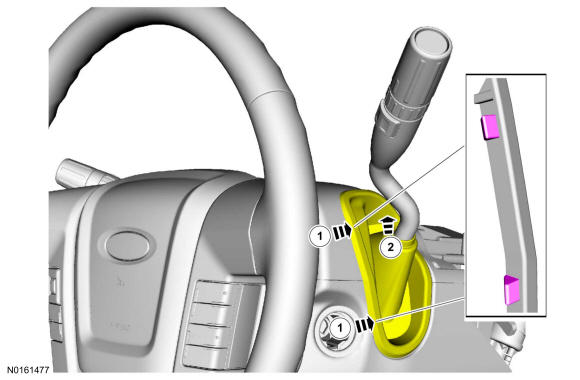

Detach the selector lever boot.
1. 1.

  Push forward on the selector lever boot.
1. 2.

  Separate the selector lever boot from the steering column shroud.

GFD134948

Courtesy of FORD MOTOR COMPANY

All vehicles

2.

Remove the steering column opening trim panel.

GFD134930

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Power column shown, manual similar.

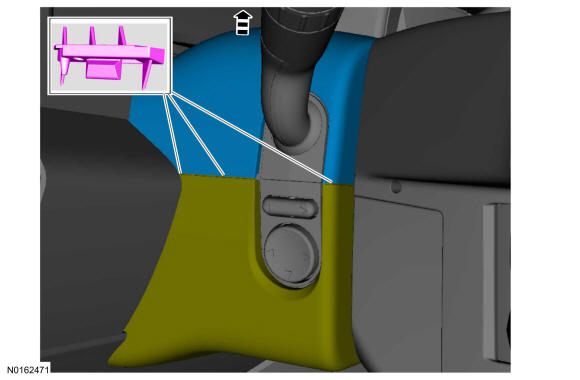

On both sides, separate the upper steering column shroud from the lower steering column shroud and remove.

GFD134949

Courtesy of FORD MOTOR COMPANY

Vehicles with power column

4.

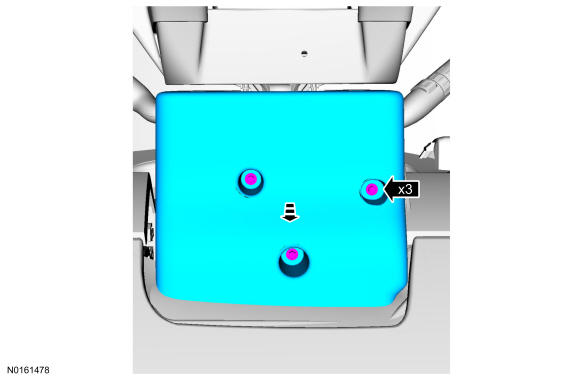

Remove the screws and the lower steering column shroud.

GFD134950

Courtesy of FORD MOTOR COMPANY

Manual column

5.

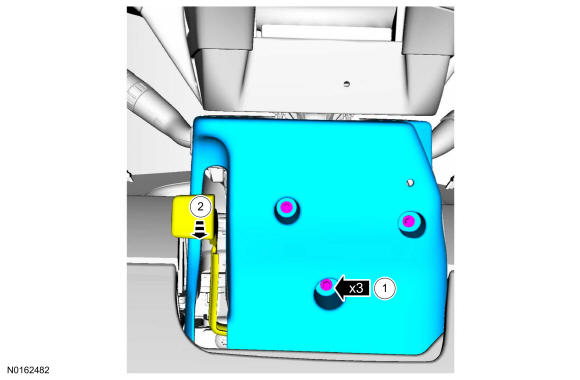

Remove the lower steering column shroud.
1. 1.

  Remove the steering column shroud screws.
1. 2.

  Position the steering column lever down and remove the lower steering column shroud.

GFD134951

Courtesy of FORD MOTOR COMPANY

All vehicles

6.

To install, reverse the removal procedure.
