Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for both the RH and LH sides.
The procedure described below is for the LH side.

REMOVE WASHER NOZZLE SUB-ASSEMBLY
1. Using a screwdriver, disengage the 2 claws and separate the washer nozzle sub-assembly as shown in the illustration.

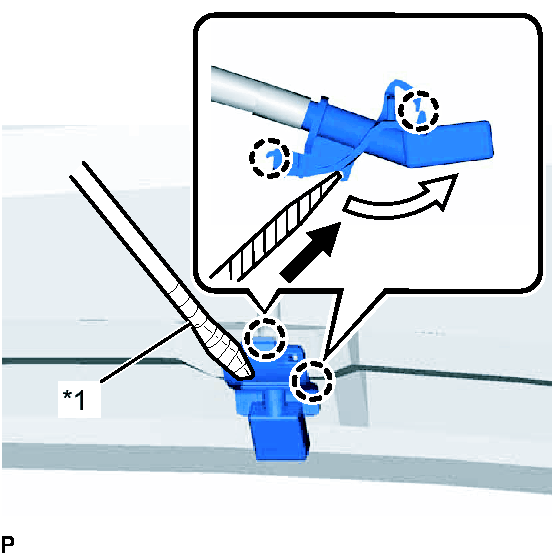

  Fig 1: Removing Washer Nozzle Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protective Tape

  NOTE:
  Be careful not to damage the windshield.

  HINT:

  Tape the screwdriver tip before use.
2. Remove the washer nozzle sub-assembly from the washer hose.

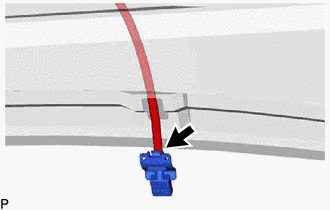

  Fig 2: Washer Nozzle Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Washer nozzles cannot be reused.
