INSTALL FRONT SEAT CUSHION HEATER (SEPARATE TYPE FRONT SEAT CUSHION COVER)
1. Using hog ring pliers, install the front seat cushion heater (separate type front seat cushion cover) to the separate type front seat cushion pad with 16 new hog rings.

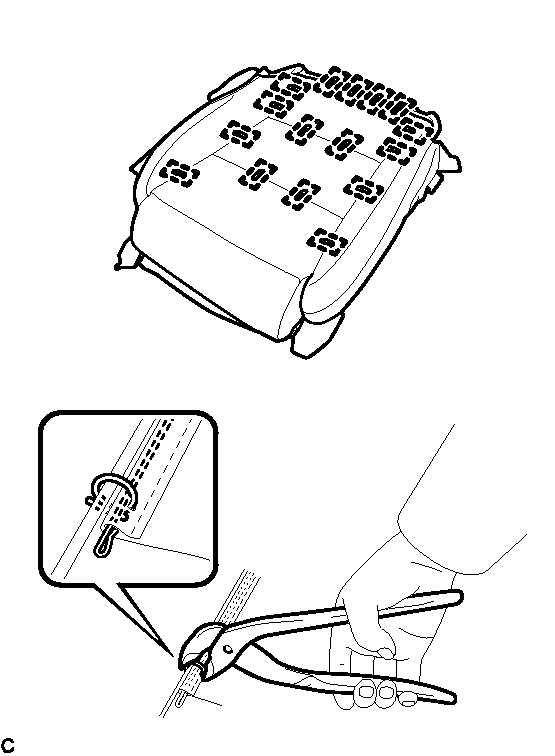

  Fig 1: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the front seat cushion heater (separate type front seat cushion cover).
  - Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seat cushion heater (separate type front seat cushion cover).
2. Using hog ring pliers, install 2 new hog rings.

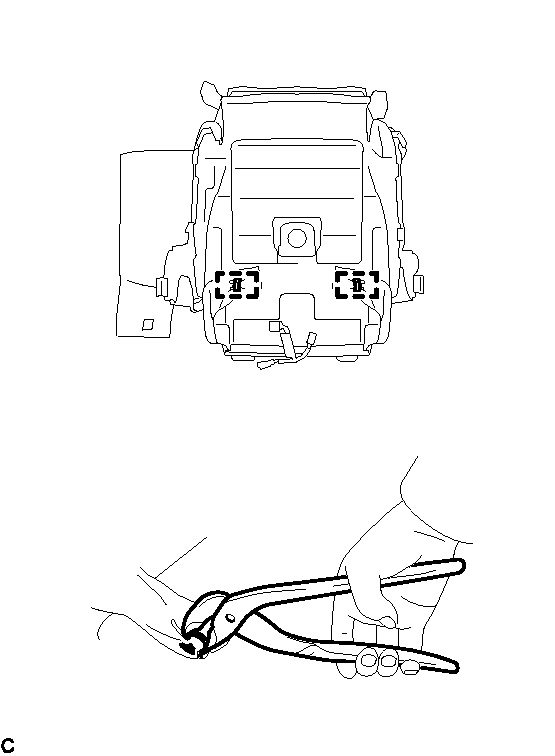

  Fig 2: Installing Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be careful not to damage the front seat cushion heater (separate type front seat cushion cover).
  - Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the front seat cushion heater (separate type front seat cushion cover).
INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (w/o Variable Seat Cushion System) See step 27
INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (w/ Variable Seat Cushion System) See step 28
INSTALL FRONT SEAT CUSHION SHIELD See step 30
INSTALL FRONT POWER ADJUSTER SHIELD See step 37
INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD See step 38
INSTALL FRONT SEAT INNER CUSHION SHIELD See step 42
CONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY (w/o Foot Light) See step 44
CONNECT FRONT SEATBACK BOARD SUB-ASSEMBLY (w/ Foot Light) See step 45
INSTALL FRONT SEAT ASSEMBLY
Refer to INSTALLATION [08/2013 - ]
