  1. REMOVE SWITCH BASE
    1. Remove the 6 screws and switch base.
      Fig 1: Identifying Switch Base Screws
      GTY410375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INSTRUMENT PANEL CUP HOLDER
    1. Remove the 3 screws.
      Fig 2: Identifying Instrument Panel Cup Holder Screws
      GTY419182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the instrument panel cup holder.
  3. REMOVE SHIFT POSITION INDICATOR
    1. Remove the 4 screws and shift position indicator.
      Fig 3: Identifying Shift Position Indicator Screws
      GTY419900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY
    1. Remove the 4 screws.
      Fig 4: Identifying Instrument Panel Cup Holder Sub-Assembly Screws
      GTY410844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the instrument panel cup holder sub-assembly.
  5. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
    1. Remove the 4 screws and console compartment door sub-assembly.
      Fig 5: Identifying Console Compartment Door Sub-Assembly Screws
      GTY404084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 CONSOLE COMPARTMENT DOOR CUSHION
    1. Remove the 2 No. 1 console compartment door cushions.
      Fig 6: Identifying No. 1 Console Compartment Door Cushions
      GTY418028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 CONSOLE BOX DUCT
    1. Remove the clip and No. 2 console box duct.
      Fig 7: Identifying No. 2 Console Box Duct Clip
      GTY418002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 1 CONSOLE BOX RETAINER
    1. Disengage the 6 claws and remove the No. 1 console box retainer.
      Fig 8: Identifying No. 1 Console Box Retainer Claws
      GTY404888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 BOX SIDE PANEL
    1. Pull the No. 1 box side panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 3 claws (A).

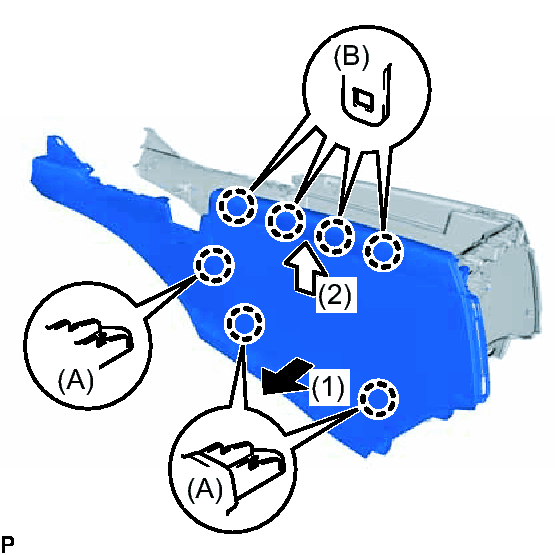

      Fig 9: Identifying No. 1 Box Side Panel
      GTY404485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the No. 1 box side panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 4 claws (B) and remove the No. 1 box side panel.
  10. REMOVE NO. 2 BOX SIDE PANEL

    HINT:

    Use the same procedure as for the No. 1 box side panel.

  11. REMOVE NO. 3 CONSOLE BOX DUCT
    1. Remove the 4 screws and No. 3 console box duct.
      Fig 10: Identifying No. 3 Console Box Duct Screws
      GTY408856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 4 CONSOLE BOX DUCT

    HINT:

    Use the same procedure as for the No. 3 console box duct.

  13. REMOVE FRONT UPPER CONSOLE PANEL GARNISH
    1. Disconnect the connector.
    2. Disengage the 2 claws and remove the front upper console panel garnish.
      Fig 11: Identifying Front Upper Console Panel Garnish Claws
      GTY408241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 5
  15. REMOVE NO. 2 INSTRUMENT PANEL WIRE
    1. Disengage the 2 clamps and remove the No. 2 instrument panel wire.
      Fig 12: Identifying No. 2 Instrument Panel Wire Clamps
      GTY408244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE UPPER NO. 1 BOX PLATE
    1. Remove the 2 screws.
      Fig 13: Identifying Upper No. 1 Box Plate Screws
      GTY408479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws and 2 guides.
    3. Pull the upper No. 1 box plate in the direction indicated by the arrow (1) shown in the illustration.

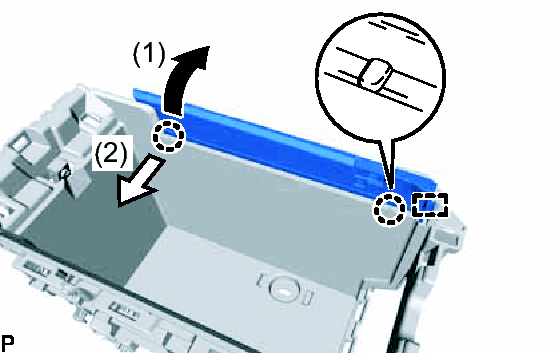

      Fig 14: Identifying Upper No. 1 Box Plate
      GTY407623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Pull the upper No. 1 box plate in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 claws.
    5. Disengage the guide and remove the upper No. 1 box plate.
  17. REMOVE UPPER NO. 2 BOX PLATE

    HINT:

    Use the same procedure as for the upper No. 1 box plate.

  18. REMOVE NO. 2 CONSOLE COMPARTMENT DOOR CUSHION
    1. Remove the No. 2 console compartment door cushion.
      Fig 15: Identifying No. 2 Console Compartment Door Cushion
      GTY401120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.
