Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE SHIFT LEVER SUPPORT
Refer to REMOVAL [08/2013 - ]
REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY See step 44
REMOVE QUICK HEATER ASSEMBLY
1. Remove the bolt.

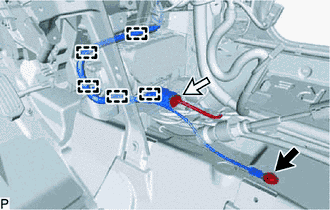

  Fig 1: Identifying Quick Heater Assembly, Clamps, Connector & Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector.
3. Disengage the 5 clamps.
4. Remove the 2 screws and quick heater assembly as shown in the illustration.

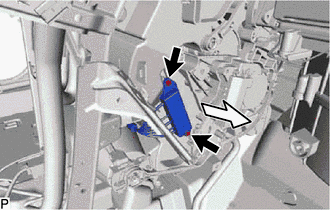

  Fig 2: Identifying Quick Heater Assembly & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
